Máy mài bề mặt - ngang

Okamoto ACC 64CA-iQ

Machine-Details:
Stock-No. 1022-2424
Type of machine Surface Grinding Machine - Horizontal
Make OKAMOTO
Type ACC 64 CA-iQ
Year of manufacture 2019
Type of control CNC
Storage location Monheim (Germany)
Country of origin Thailand
Delivery time Immediately
Freight basis Ex warehouse, loaded on truck

Technical details:
grinding length 600 mm
grinding width 400 mm
workpiece height 400 mm
weight of the machine ca. 4,5 t
dimensions of the machine ca. 3592 x 3519 x 2203 mm

Additional information:
Horizontal surface grinder in almost new condition
Ppedpfx Agoyx Drhomsp

Operating hours:
CNC on: 1198 hours
Machine on: 1117 hours
Automatic operation: 509 hours
Grinding operation: 228 hours

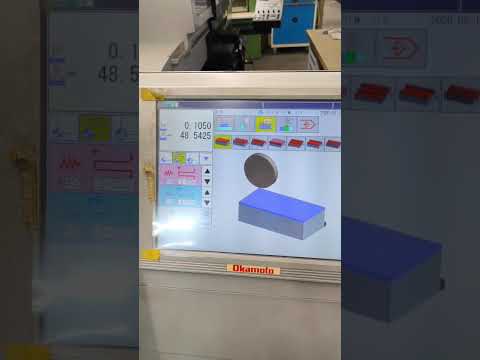

Okamoto Touch Screen Control

Travel X-axis: 600 mm
Travel Y-axis: 22.5 – 497 mm
Travel Z-axis: 400 mm
Speed range rpm: 1-2800 (stepless)
Rapid traverse mm/min: 4000
Main drive kW: 7.5
Maximum table load in kg: 1000

Accessories:
- Electro-permanent magnetic clamping plate: 400 x 600 P13 mm, height 80 mm (make Wagner)
- 2 grinding wheel flanges
- Table dresser
- Automatic straight dresser, spindle box mounted
- Automatic compensation of the wheel dressing amount
- Automatic central lubrication
- Ball screw in the Y and Z axes with AC servo motor and measuring system
- Coolant system with belt filter system
