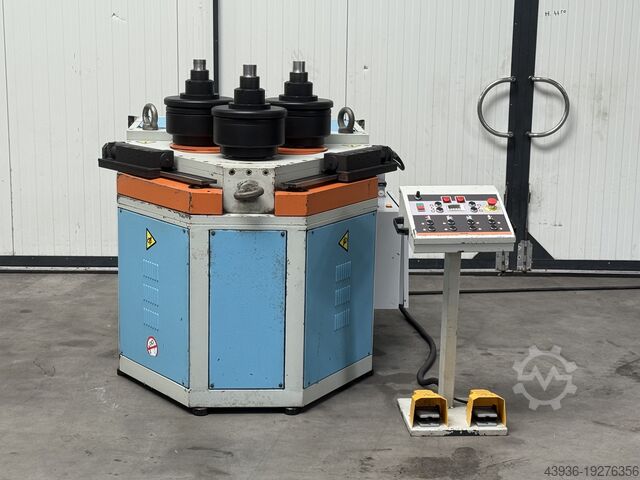

Máy uốn vòng & uốn biên dạng 120 mm

BALEIGH RH-120

Manufacturer: BAILEIGH
Type: R-H 120

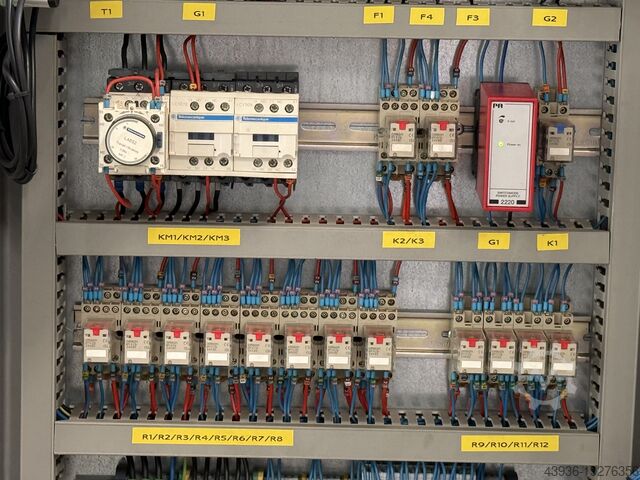

Control: Telemechanique
Year of manufacture: 2009

Arm adjustable 330 mm
Hydraulic side support
Set of universal rolls
Set of pipe rolls 88.9 mm
Set of pipe rolls 60.3 mm
Digital readout system position side rolls
Horizontal & vertical operation possible
Specifications
Metric US Standard
Horizontal and Vertical
Horizontal & Vertical
Axis Ø
100 mm
Number of rolls
3
Horizontal
Yes
Chsdpfjwpkwfex Agnoc
Vertical
Yes
Flat capacity
100 x 240 x 1600 mm
Pipe capacity
139 x 4 x 3000 Ø x mm
T-profile capacity
100 x 100 x 1000 mm
Working speed
0 - 5500 mm/min.
Adjustable side roller range
200
Upper roller pressing force
200 Bar
Side support
yes, 330 mm stroke

Dimensions (approximate)
Length
1800 mm
Width
1600 mm
Height
2000 mm
Weight
2300 kg
Please note: The information on this page has been obtained to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not constitute representations or contractual conditions. We recommend that you verify all important details.
