TRUNG TÂM GIA CÔNG CNC - 4 trục

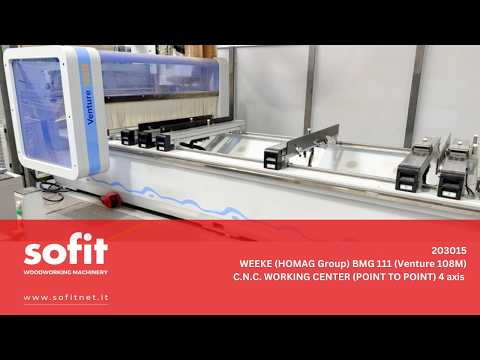

WEEKE (HOMAG Group) BMG 111 (Venture 108M)

C.N.C. WORKING CENTER (POINT TO POINT) 4 axis
Goose-neck type
Numerical Control Power Control - Software woodWOP
Safety cabin (enclosure) of the working head
Working table with pods and rails- No. 6 Support rails
Front emergency carpets
LASER system on X-axe for the rails positioning and on Y-axe for the vacuum pods positioning
Automatic Tools Changing System
No. 2 Tools storage plates W8 (No. 8 rear spaces) + (No. 8 lateral spaces)
Max. useful working area (X - Y - Z) mm 3130 x 1250 (1550) x 100 (150)
No. 2 Working areas - 1 x Vacuum pump (capacity 70 m3/h)
Motorized carpet to evacuate chips and wastes
Separate electric and command cabinet
Total installed power A 32
WORKING GROUPS (TOP):
No. 12 Independent vertical boring spindles (High Speed 7500)
No. 6 Independent horizontal boring spindles (No.4 in X-axe + No. 2 in Y-axe)
Drilling head motor-power (Kw) 2,3
Circular Grooving Saw (tiltable 0°- 90°) diam. (mm) 125 (N1 X-Y 90°)
No. 1 Vertical electro-spindle: HSK63 (KW 9)

OPTIONAL: Drilling Group with No. 4 horizontal boring spindles (Crosshead)
