Máy mài bề mặt - ngang

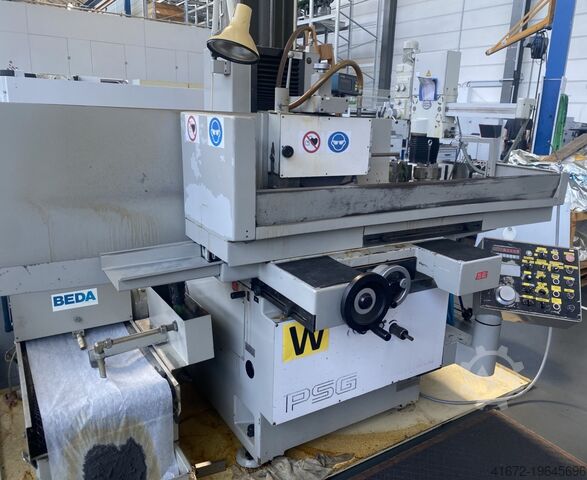

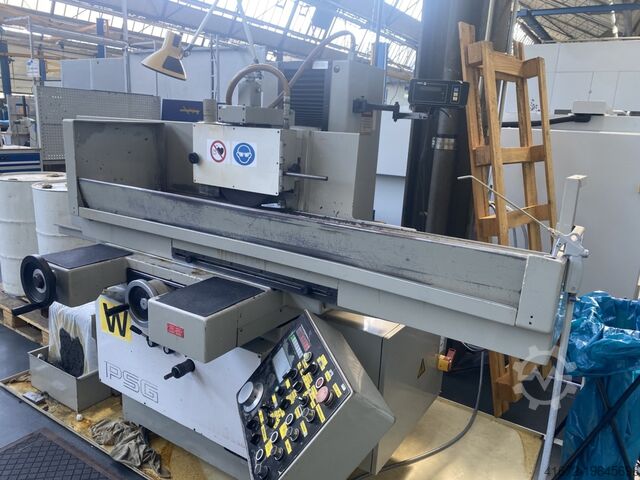

OKAMOTO PSG 63 UDX

voltage 380 V
connected load 7,5 kVA
dimensions 2725 x 1930 x 1773 mm
weight of the machine ca. 2500 kg
--> Technical data Main data:
--> Table surface: 605 x 300 mm
--> Table longitudinal movement max. (manual): 750 mm
--> Table transverse movement: 340 mm
--> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm
--> Standard size of magnetic clamping plate: 600 x 300 mm
--> Workpiece weight incl. magnet: 420 kg

--> X-axis / longitudinal movement:
--> T-slots (number x width): 3 x 17 mm
--> Table feed, hydraulic: 0.3 - 25 m/min
--> Travel per handwheel revolution: 47 mm

--> Y-axis / height movement:
--> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm
--> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm
--> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm
--> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm
--> Trigger strokes: 0 - 5
--> Rapid traverse: 400 mm/min

--> Z-axis / transverse movement:
--> Automatic transverse feed intermittent: 0.5 - 20 mm
Dksdpfxsw Dvkas Ai Dou
--> Automatic transverse feed / rapid traverse continuous: 0.1 - 1.0 m/min
--> Distance per handwheel revolution: 5.0 mm
--> Scale mark on handwheel: 0.02 mm

--> Standard grinding wheel:
--> Ø x width: Ø 355x38 (50) mm
--> Bore: Ø 127 mm
--> Speed: 1500 rpm

--> Accessories Various grinding wheels
--> Documentation
