Ô cell hàn điểm công nghiệp

YASKAWA / NIMAK / RSP LASO Tech Systems

Resistance spot welding system LASO Tech Systems "WP Welding System"
Year of manufacture: 2023
Serial number: 21220
Order number: 11B01 265845
Manufacturer: LASO Tech Systems GmbH, 98527 Suhl
Type: WP welding system
Total weight: approx. 8,600 kg
Dimensions (L x W x H): approx. 9.4 x 4.0 x 3.1 m
Rated voltage: 400 V / 3 Ph / 50 Hz
Rated power: 138 kVA at 100% duty cycle

Iodpfx Ajxlixwjh Hetp
Main Components:

YASKAWA Positioner V2-500D3 L = 1650
Serial number: 466843-1-1 | Year of manufacture: 2022 | Weight: 1,409 kg | Item number: 411503 |
Part No.: 148548-100 (Yaskawa Nordic AB, Sweden)
Equipment: Servo rotary axis, swivel unit, Penlink rotary union (P/N 365003 – S/N 3197). Total unit weight: approx. 1,500 kg. Project assignment: LASO Tech, Project No. 30101293.

Welding cell LASO WP-SLK
Steel frame construction with safety enclosure, electrically interlocked access points.
Integrated positioning systems (S1 / S2). Controller: LASO industrial PC / Siemens S7 / Robot controller compatible with YASKAWA Motoman. Power supply 400 V / 50 Hz / 138 kVA. Process control for resistance spot welding with cooling water, compressed air, and network interfaces. Full I/O wiring provided.

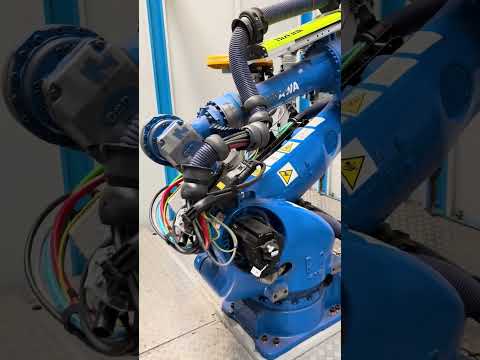

YASKAWA Industrial Robot GP180 with Controller YRC1000
Type: YR-1-06VX180-A00 | Year of manufacture: 11/2022 | Payload: 180 kg | Own weight: 1,020 kg
Serial number: 6V22Y2842450001 | Manufacturer: YASKAWA Europe Robotics d.o.o., Kocevje (Slovenia)
Controller: YRC1000, type ERAS-1000-06VX280-E10, SN 6V22X2807840001, year: 10/2022
Power: 6.5 kVA, supply: AC 380–440 V, 50/60 Hz | Teach Pendant +RM1 | Integrated safety shutdown.

Control Cabinet NIMAK multiCONTROL with Bosch Rexroth PRC7300
Type: PRC7300-L1-01VRS-0105-01-00002-EC-01 | Serial number: 7261404217680
Supply: 3~ 400–480 V / 110 A | Manufacturer: Bosch Rexroth AG, Lohr am Main
Year: 2023 | Fully wired with safety modules and EMZ interface.

RSP Tool Changer System
Manufacturer: Robot System Products (RSP), Sweden | Type: P8366-150 with tool changer P7501-036 (Sn 0001 / 0002) and docking units P8303A.
Pneumatic, coolant, and signal transfer integrated. Connection via RobiFix.

Welding Guns
Gun 1 – NIMAK LRN 300-650-R54-175-150-P2U-WR
Project: 95.011.360 | Machine No.: 2212–2129 N | Weight: 120.5 kg | Year: 2023
Transformer: Expert MF100-530 V-A.01 (SN: T-297432). Coupling: RSP P7501-036 + P8303A.
Gun 2 – NIMAK CRN 300-650-R54-200-P2U-WL
Project: 95.029.224 | Machine No.: 2212–2128 N | Weight: 109.5 kg | Year: 2023
Transformer: Expert MF100-530 V-A.01 (SN: T-297431). Coupling: RSP P7501-036 + P8303A.

Welding Gun Cleaning Station (LASO Special Construction)
Free-standing unit on steel base with SEW geared motor (400 V). Two round brushes Ø 180 mm x 150 mm.

Condition and Scope of Delivery
Entire system built 2022/2023, as new condition.
All components including cabling, control cabinets, safety enclosure, and documentation are supplied.
Dismantled and transport-secured as agreed.
