WEINIG Unicontrol 12 NC

Tenoning spindle 1 Stk.
Number of milling agregates 5 St.
Spindle diameter 50 mm

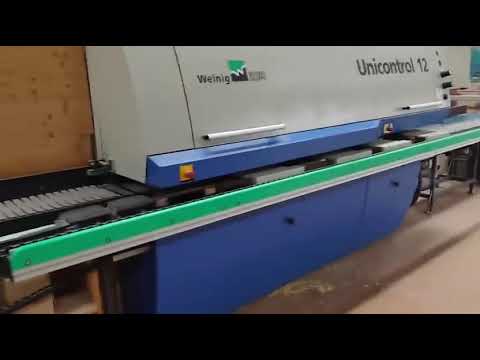

Weinig Unicontrol 12
with radial and axial NC spindles, VARIO table, and milling carriage
.....

Machine still in operation available for viewing!
Optionally available with used tools and window design software
for data transfer to the Unicontrol 12!

Technical Data Summary
Pgodpfx Agoxr Rbgjzju
(Please inquire about any additional accessories included)
.....

Crosscut Saw
.....
> Electronic crosscut saw, continuously adjustable horizontally
> Number of tools: 1
> Spindle speed: 3,000 - 6,000 rpm
> Spindle diameter: 40 mm
> Maximum tool diameter: 400 mm
> Motor power: 3.0 kW
> Laser alignment light for detecting the saw cut
> Axial adjustment range: 150 mm, electronically continuously adjustable NC axis
> Radial pneumatic adjustment range: 8 positions, e.g., for edge rounding from above

Rounding Unit
.....
> Position: horizontal, below
> Motor power: 1.5 kW
> Spindle diameter: 20 mm
> Tool clamping length: 25 mm
> Spindle speed: 9,000 rpm
> Tool diameter: max. 130 mm
> Axial adjustment range mechanically coupled to the cross-cut saw.
> Radial adjustment pneumatically controlled on/off

Electronic length stop
.....
> Length 4,100 mm

1. Tenon and slot spindle
.....
> Number of tools: variable
> Motor power: 15 kW
> Spindle diameter: 50 mm
> Tool clamping length: 640 mm, with counter bearing
> Axial adjustment range: 580 mm NC axis, continuously variable
> Spindle speed: 2,800 rpm
> Tool diameter: max. 400 mm
> Follow-up counter, the entire clamping length is countered

Transfer belt
.....
For transferring parts to the longitudinal processing area, including
double part separation before the infeed of the longitudinal processing area.

1. Profiling spindle (up- and down-axis rotation)
.....
> Position: vertical right
> Number of tools: variable
> Motor power: 11 kW
> Spindle diameter: 50 mm
> Tool clamping length: 400 mm, with counter bearing
> Axial adjustment range: 350 mm, continuously variable NC axis
> Radial adjustment range: 80 mm, continuously variable NC axis
> Spindle speed: 6000 rpm
> Minimum tool travel circle: 140 mm
> Maximum tool travel circle: 232 mm
> 2 feed rollers, pneumatically controlled axially opposite the spindle,
8 positions

2. Profiling unit (grooving unit from above)
.....
> Position: horizontal, top
> Motor power: 3.7 kW
> Spindle diameter: 40 mm
> Tool clamping length: 40 mm
> Axial adjustment range: 30 mm 8 positions
> Radial travel 125 mm, 8-station turret
> Spindle speed: 9,000 rpm
> Maximum tool travel: 130 mm

3rd profiling spindle
.....
> Position: vertical right
> Number of tools: variable
> Motor power: 11 kW
> Spindle diameter: 50 mm
> Tool clamping length: 400 mm, with counter bearing
> Axial travel 350 mm, continuously variable NC axis
> Radial travel 80 mm, continuously variable NC axis
> Spindle speed: 6,000 rpm
> Minimum tool travel: 140 mm
> Maxi...
