Máy dập lỗ bằng laser

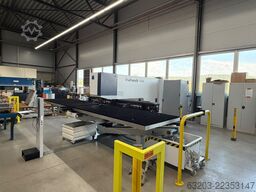

TRUMPF TruPunch 1000 2019

Trumpf TruPunch 1000, 2019

X Working area max.: 2500 mm
Y Working area max.: 1250 mm

Operating hours: 14,669 hours

Machine
- C-frame
- Coordinate guidance
- Linear magazine with 20 positions for clamping blocks and tools
- Hydraulic clamping blocks (2 pieces + 1 option)
- Drives with maintenance-free three-phase motors
- Post-processing unit with programmable positioning device
- 1st stop pin (inside right)
- Transfer chute

Punch head
- Electro-hydraulic punch head
- Rotatable mono-tool holder
- Programmable positioning device position
- Tool length compensation
- Spray lubrication for punch
- Punch slug extraction
- Forming function

Control
- TRUMPF control based on Rexroth IndraMotion MTX
- Control panel with 15" TFT color screen
- Integrated technology data
- Teleservice interface via internet
- Automatic shut-down
- Program management
- Production plan

Data transfer
- USB interface
- RJ45 network connection

Safety
Hnedpfxjzmgi Nj Ac Aop
- CE marking
- Multi-beam light barriers
- Rapid shut-down of drives

Extended standard equipment

- Brush tables
- Chip conveyor + chip container
- Additional clamping block
- Sheet thickness detection
- Vibration-damped installation
- Programmable support table
- Sensor for transfer chute
- Wireless operation point

Extended punching technology:
Multitool
Thread forming
