Trung tâm gia công - dọc

SAMAG CS 400x2500

Technical details:

x-travel: 2500 mm
y-travel: 560 mm
z-travel: 600 mm
control: TNC 426 CA
bore capacity in steel (diameter): 400 cm³/min
Max. Milling-capacity: 400 cm³/min
tool changer with: 34 Plätze
Tool pull-in force: 12 kN
spindle taper MT: SK 40
spindle throat: 580 mm
Revolution per minute: 20...7500 steples U/min.
max. torque on the spindle: 210 Nm
distance spindle nose and table: 0 - 600 mm
feed:: X/Y/Z = 1 - 24.000 steples mm/min.
rapid traverse:: X/Y/Z = 24 steples m/min
feed power: X/Y = 6 kN und Z = 8 kN kN
table-size: 3300 x 500 mm
table load capacity - central/maximum: 2500 kp
interface: ja
total power requirement: ca. 43 kW
Weight approx.: 14,4 t
dimension machine approx.LxWxH: 3,05 x 5,6 x 3,0 m
Ndjdpsvad Hpjfx Anpob
dimension swarf conveyor LxWxH: 6.6 x 0,6 x 1,3 m

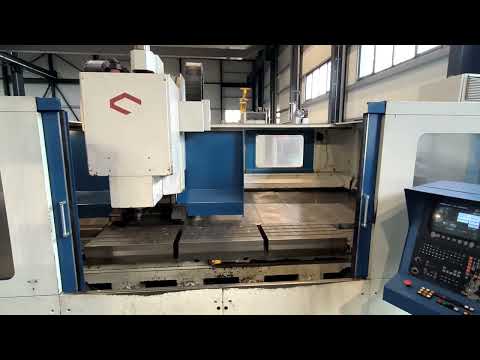

VERTICAL DRILLING AND MILLING CENTER in travelling column design.
with integrated coolant supply
link belt chip conveyor MAN+HUMMEL with cooling water tank and pump
cooling lubricant treatment ALLWEILER AG, size L:1550 x W: 1000 x H:1200mm; filter belt width 500mm; pressure 30bar
Hydraulic unit
Machining area can be partitioned, partition wall available



*
