Ruchsr Assembly line consisting of:

Knedpfx Aed Ih Huoi Roc
Item 1.0 /

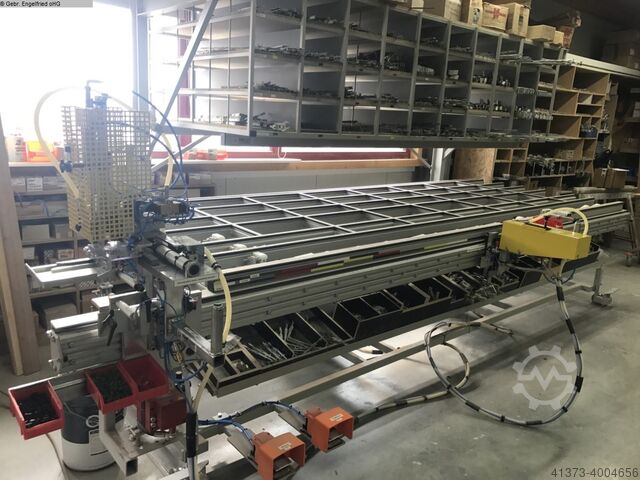

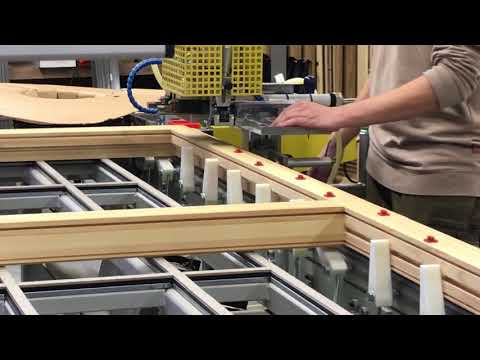

RU-CBM 4000 work table
with running rail extended by 500mm for additional assembly
an aluminum holder screwing machine for RU-CSA-SMB or RU-CSA-SMZD
with RU-SH special screwdriver, support table
Length 4000 mm, width 1400 mm, inclination of the working platform
manually adjustable. Holder for fitting scissors or fitting punch.
16 pieces of swiveling counter-holders for hanging the wings, completely
pneumatic
Foldable for unhindered movement of the wings on the table surface.
Device for scanning the sash fitting length for constant and
variable/central gear seat for already drilled wings, colored
Dimension recognition of the fittings.
RU-SH, special screwdriver with pneumatic depth switch on carriage
mounted, safety control, pneumatic height adjustment,
Screw feeder with automatic shutdown of the filling container
(Manual insertion for a second screw length on the special screwdriver upon
request).

RA-8, turret stop for 8 screw levels mounted on the carriage.

RA-4, turret stop for 4 different wing widths
Swivel table mounted.
Pneumatic wing measurement sensing. operated, scanning range up to 2500mm
simultaneous clamping of the scanning.

PSF - Pneumatic tensioning device for sashes.
Working height adjustable from 900 - 1000 mm.
Support table covered with felt. Running rail extended to the left by 800 mm.

Item 1.1 / 5035-1
Pneumatic swivel device of the work surface with foot valve

Item 1.2 / 0500000
Holder matched to customer punch/scissors.
For mounting a hardware punch provided by the customer or
Fitting shears (third-party manufacturer) on the sash assembly table.

Please specify make when ordering!!!

Item 1.3 / 5597-7
Driving device for RU-CBM on semicircular rails.
The castors are on the left and right of the base frame
of the table mounted.

Item 1.4 / 6354-6
3 double meters of semicircular rails 30 x 10 mm.
Item 1.5 / 0730000
RU-SBL3000/40 free-standing fitting bearing,
Length 3100 mm, depth 1250 mm, height 2200 mm,
Stand frame on the front without supports,
40 compartments, divided into 10 compartments in a row by dividers
and a continuous shelf at the top,
Compartment size: width 280 mm, height 150 mm.

Item 2

RU-CSA-SMB aluminum holder screwing machine with automatic
Screw feeding and manual feeding of the aluminum holders from one
traveling box with pneumatic positioning device,
Screwdriver with depth cut-off with 4-fold turret stop.
Pneumatic adjustment device in the y direction against 2 pieces 6-fold
Revolver attacks. Feed container for manual feeding of rotary holders
or clip holder in square shape 18.5 x 18.5.
The holder is manually pushed into a channel in the box and with
positioned in front of the screwdriver mouthpiece using a pneumatically
operated slide.
Profile depth max. 150 mm, screw spacing in the y direction max. 120 mm.

Item 3
RU-S48-A6-350 column slewing crane
for chain hoist, with 6 m aluminum boom
Version with column, smooth-running boom
and sliding chassis for swivel and trolley travel
manually by pulling and pushing the load.
Projection 6 m
Construction height 4,461 m
Lower edge of boom 3.722 m (top edge of boom 3.9 m)
Swivel range max. 270°
Painting of the steel construction in RAL 7035
The base plate is attached to the on-site hall floor
At least 250 mm thick.
Designed, of course, according to the valid STANDARD EN 13155...
