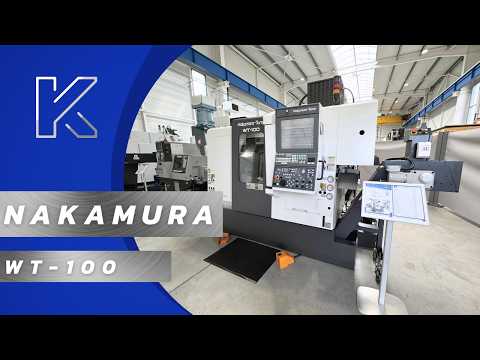

Máy tiện CNC NAKAMURA-TOME WT-100

Nakamura-Tome WT-100

CNC Lathe NAKAMURA-TOME WT100



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2012
CNC control: FANUC 31i-B
Distance between spindles: 735 [mm]
Max. cutting diameter: 190 [mm]
Max. turning lenght: 503 [mm]
Stroke Y axis: -31 / +31 [mm]
Stroke Z1 axis: 503 [mm]
Stroke X1 axis: 135 [mm]
Stroke Z2 axis: 503 [mm]
Stroke X2 axis: 135 [mm]
Rapid traverse rate X1 axis: 16000 [mm/min]
Rapid traverse rate X2 axis: 16000 [mm/min]
Rapid traverse rate Z1 axis: 40000 [mm/min]
Rapid traverse rate Z2 axis: 40000 [mm/min]
Rapid traverse rate Y axis: 6000 [mm/min]
Spindle nose: A2-5"
Max. bar diameter in turning spindle: 42 [mm]
Spindle throughbore: 56 [mm]
Max. spindle speed: 6000 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 11 [kW]
Spindle torque: 75.4 [Nm]
Counter spindle nose: A2-5"
Counter spindle throughbore: 56 [mm]
Counter spindle stroke: 525 [mm]
Max. counter spindle speed: 6000 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 11 [kW]
Counter spindle torque: 75.4 [Nm]
Max. tool holder cross-section: 20 x 20 [mm]
Number of tool stations - Turret 1: 12
Number of tool stations driven - Turret 1: 12
Max. speed driven tools - Turret 1: 6000 [rpm]
Number of tool stations - Turret 2: 12
Number of tool stations driven - Turret 2: 12
Max. speed driven tools - Turret 2: 6000 [rpm]
Live tools power: 7.1 [kW]
Total power required: 55.2 [kVA]
Supply voltage: 400 [V]
Weight: 6200 [Kg]


INCLUDED EQUIPMENT:


x1 IEMCA BOSS 545 E Type 32 L bar feeder (3 m bar capacity)
Fpsdezhvwlopfx Apasn
x1 SMW-AUTOBLOK Mario Pinto PPBE-42 A5 collet chuck (S1 spindle)
x1 Collet chuck (S2 spindle)
x4 Radial driven tool holders
x2 Axial driven tool holders
x16 Static tool holders
x1 Foot pedal control for chuck open/close
x1 Parts catcher on upper turret with conveyor belt
x1 Chip conveyor
x1 Automatic lubrication system
x1 Three-color status indicator lamp
x1 Transformer
x1 USB memory stick for parameter backup



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
