HOMAG PROFI BMG 512/40/12/V/A

HOMAG PROFI BMG 512/40/12/V/A

This 4-axis HOMAG PROFI BMG 512/40/12/V/A was manufactured in 2016, featuring a POWEREDGE gluing unit and a 4-fold edge magazine. It includes an 18-fold disc tool-changer, a 12 kW processing spindle, and a C-axis with unlimited swivel range. The machine supports workpiece lengths up to 4000 mm and thicknesses up to 300 mm. Ideal for advanced woodworking, it offers dynamic space allocation for optimal processing area utilization. Contact us for more information about this machine.

Additional information

Workpiece

• Lengths: 4000 mm for single placement / 2250 mm for pendulum placement
• Widths: 1450 mm for all units and front stop
• Maximum Workpiece Thickness: 300 mm (including clamping devices)
• Up to 60 mm with standard clamps without restrictions for units and extraction.

Table

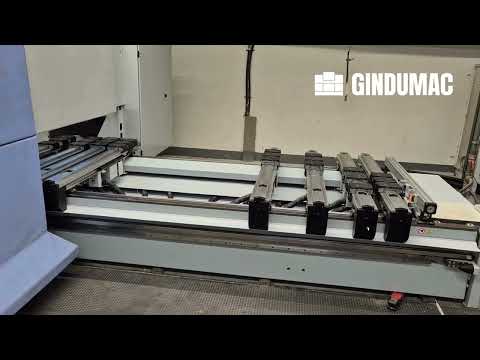

• Automatic Console Table
Ledpsx D Nzvefx Apuehf
• Automatically adjustable console table
• 8 consoles Y = 1500 mm
• 16 side and stop pins 140 mm, electromechanically controlled
• Dynamic space allocation for optimal utilization in pendulum operation
• Various double vacuum clamps
• Without vacuum pump; supplied via a building-side vacuum system

Tools

• 18-fold disc tool-changer

Main Drive

• Processing Spindle: 12 kW (S6 operation) / 9.5 kW (S1 operation)
• Spindle with hybrid bearings
• Frequency-controlled rotation: rpm
• Automatic feed reduction with decreasing spindle speed

Injection Unit

• POWEREDGE Gluing Unit
• Gluing unit for 360° edge gluing on butt joints
• Glue application via application roller onto edge material
• 1 pressure roller Ø 50 mm, 1 follow-up roller Ø 35 mm
• Max. edge height: 65 mm
• Edge thickness: 0.4 - 3 mm (veneer 0.4 - 2 mm / PVC 1.0 - 2 mm)
• Hot air nozzle for heating thick edges on small radii, controllable via NC

Machine Control

• POWERCONTROL PC 86 POWERTOUCH
• With 21.5" Full-HD multitouch display
• WoodWOP for graphical, dialog-oriented creation of CNC programs
• Diagnostic system WOODSCOUT

Additional Equipment

• Interface for FLEX 5 unit
• C-axis with unit interface
• Unlimited swivel range
• Coupling element for automatic tool change of FLEX 5 unit
• Drilling Head
• 21 spindles V17 / H4 / S0 / 90°
• 17 vertical drilling spindles with quick-change system
• T-shaped arrangement: 7 spindles in Y-direction / 11 spindles in X-direction
• 4 horizontal spindles with saw 0 / 90°
• Pre-cutting Station
• Moves with the processing portal (X-axis)
• Saw / Trimming Unit for Tool Changer
• Combined trimming and corner rounding unit, sensor-controlled
• Combined flush-trim / pull-knife unit

Extra Information

• Coolant tank for processing spindle
• Integrated chip conveyor, discharging to the leftNote: The technical data and descriptions are for informational purposes only and are not binding.
