Máy uốn vòng hồ sơ

GERD WOLFF HPK-65 Rohrbiegemaschine

angle steel/side length / mm
double T-iron on the x-axis / mm
U-iron on the x-axis / mm
total power requirement / kW
weight of the machine ca. 1000 kg
required space 1200 850 x 1200 mm
The Gerd Wolff HPK-80 is a hydraulic profile and tube bending machine with 3
rollers. The machine is ideal for bending profiles, tubes and similar material.

Model: HPK 65
Upper shaft diameter: Ø 60 mm
Bottom shaft diameter: Ø 50 mm
Roll diameter: Ø 180 mm
Working speed: 6 m/min
Motor power: 3.75 kW / 380 V
Gtjdpew Nbmpofx Ah Ejt
Dimensions (L x W x H): 1200 x 850 x 1200 mm
Weight: 1000 kg



Standard Accessories:

Steel construction welded frame
3 rolls are powered
Hardened and ground shafts made of high tensile special steel
Horizontal and vertical working position

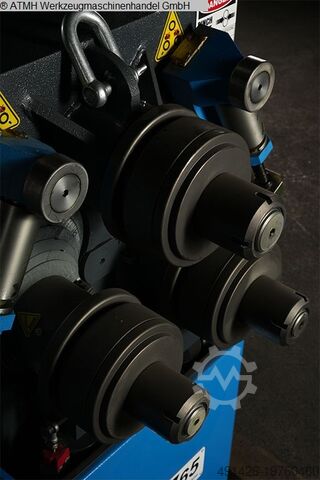

Hardened standard rolls

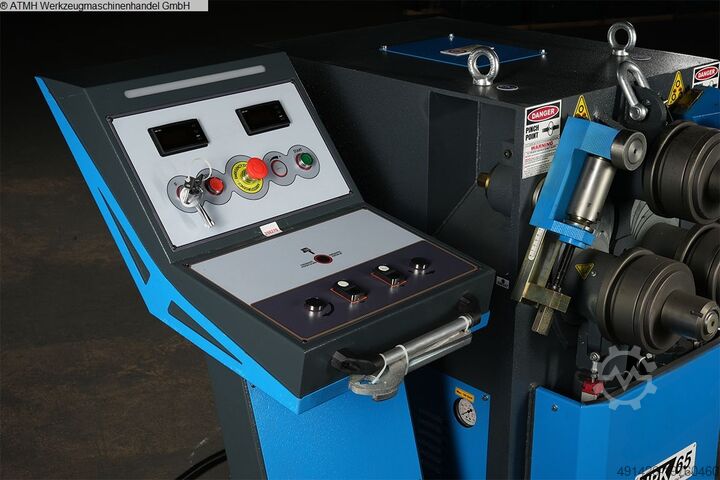

Mobile control panel
3-axis mechanical lateral angle guide rolls
Brake motor equipped for precision bending
Digital read-outs (2 pcs)



Optional Equipment:

NC control
Hydraulic lateral guide rollers (2-axis)
Spiral bending crane
Special profile rolls
