Trung tâm tiện và phay CNC

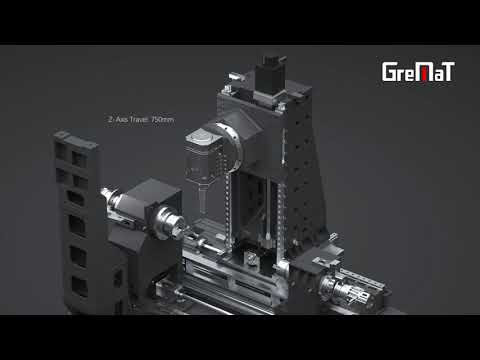

Z-MaT TBX63S,B-Achse +-120°

Z-Mat TBX63S ZMATROL 15", 5-axis simultaneous (Siemens/Fanuc optional)
Turning/milling center with B-axis ±120°, 12,000 rpm
6" sub-spindle, Y-axis travel 150 mm

Max. swing diameter: 450 mm
Max. turning diameter: 250 mm
Max. turning length: 750 mm
Linear roller guideways on all axes

Main spindle
Chuck diameter: 203 mm
Spindle nose: A2-6
Max. bar diameter: 52 mm
Spindle bore diameter: 66 mm
Drive power, DDS: 18.5 kW
Max. speed: 4,000 rpm

Sub-spindle
Chuck diameter: 152 mm
Spindle nose: A2-5
Max. bar diameter: 46 mm
Spindle bore diameter: 56 mm
Drive power, DDS: 11 kW
Max. speed: 5,000 rpm

Milling spindle
Iedpfx Aeyv A Najfxetd
Spindle interface: HSK-T63
Max. speed: 12,000 rpm
Drive power: 30 kW
Max. torque: 95 Nm

Axis travels
X-axis travel, with Heidenhain glass scale: 790 mm
Y-axis travel: -75 mm
Z-axis travel: 750 mm
W-axis travel: 1,000 mm
B-axis swivel range: ±120°
Rapid traverse X, Y, Z, W-axis: 24 m/min

Tool magazine
Double arm: 30 tools
Max. diameter / length / weight: 78 mm / 250 mm / 8 kg

Dimensions (W x D x H): 4.45 x 2.76 x 2.85 m
Weight: 9.8 t

Standard equipment
30 bar through-spindle coolant
Ergonomic control panel with handwheel
USB port, Ethernet, memory card
Full enclosure
Safety interlock door switch
Coolant system
Control cabinet air conditioning
3-color warning light
Work area lighting
Centralized lubrication
Tools and toolbox
CE conformity
Operating manual

A wide range of automation systems, such as bar feeders and loading robots, are available.
