WEINIG Unicontrol 6 NC Spindeln

Tenoning spindle 1 St.
Number of milling agregates 4 St.
Spindle diameter 50 mm
Control Weinig PC-Nexus

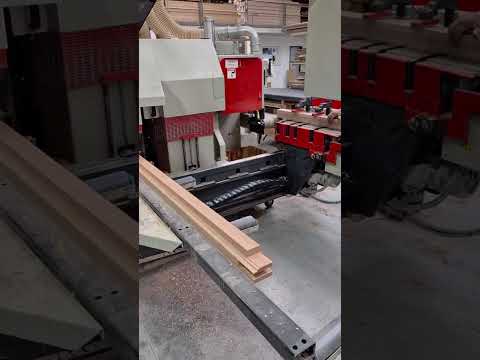

# 7015 Weinig Unicontrol 6 with NC spindles
-----
Machine available for inspection while still in operation until September 2026

Summary of technical data
(please inquire about any additional accessories included)

Item 1: Cross-cut saw
-----
> Electronic cross-cut saw, horizontally continuously adjustable
> Number of tools: 1 unit
> Spindle speed: 2,800 rpm
> Spindle diameter: 40 mm
> Max. tool diameter: 400 mm
> Motor power: 3.0 kW
> Laser alignment light for identifying the cut position
> NC length stop mounted on the slotting table included;
positioning of the cross-cut saw integrated into the control system. > Length 3500 mm

Item 2: Tenoning and slotting spindle
-----
> Number of tools: variable, infinitely adjustable via NC axis
> Tool clamping length: 320 mm
> Vertical spindle stroke: variable, infinitely adjustable 254 mm via NC axis
> Spindle speed: 3500 rpm
> Spindle diameter: 50 mm
> Max. tool diameter: 320 mm
> Motor power: 11 kW

Item 3: 1st profiling spindle (climb-cut and conventional-cut capable)
-----
> Position: vertical right
> Number of tools: 1 pc.
> Tool clamping length: 120 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Max. tool cutting circle: 232 mm
> Motor power: 7.5 kW

Item 4: 2nd profiling spindle
-----
> Position: vertical right
> Number of tools: variable, infinitely adjustable via NC axis
> Tool clamping length: 320 mm
> Vertical spindle stroke: variable, infinitely adjustable 254 mm via NC axis
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Max. tool cutting circle: 232 mm
> Motor power: 11 kW

Item 5: Horizontal profile milling unit (top)
-----
> Clamping length: 40 mm
> Spindle diameter: 40 mm
> Motor power: 3.0 kW
> Speed: 5,850 rpm
> Max. tool cutting circle: 130 mm
> Axial adjustment range: 2 positions
> Radial adjustment range: 2 positions

Item 6: 3. Profiling spindle (hardware groove spindle)
-----
> Position: vertical, right
> Tool clamping length: 160 mm
> Axial adjustment range: 3 positions
> Radial adjustment range: 2 positions
> Spindle speed: 5,850 rpm
Ncodpfx Acjzdk Hysnou
> Spindle diameter: 40 mm
> Max. tool cutting circle: 210 mm
> Motor power: 3.0 kW

Additional features
-----
> Network-ready (online capability)
> Rebating unit for tear-free rebating
> Double-part processing package
> Return conveyor system for one-man operation: slat conveyor
> Screen-based control system
> Angled window processing unit
> Electronic angle display for angled windows
> Industrial PC, PC control/NEXUS
> Excluding machining tools

-----
Price of the above-mentioned machine available on request!
-----
Optional extra: EUR 6,500.00
Note regarding used tools:
We currently have used "Gold" series tools in stock (Stock No. #2790)
Window tools (Gold series) for IV78 Wood and IV78 Wood/Aluminum
Previously used on a Weinig Unicontrol 10; a jointing cutter is additionally
required for use on a Unicontrol 6.

Tool set for fixed-stroke or CNC spindle machines (80 mm and 95 mm stroke),
(Tool set prepared for IV92 where technically feasible)
Wood-aluminum tool set ...
