Máy tự động CNC cho sản xuất pallet
Sysmathick RPA9 + Stapler

Name: Sysmathick RPA9 + Stapler
Brand: Sysmathick
Availability: InStock

Năm sản xuất

2005

Tình trạng

Đã qua sử dụng

Vị trí

Leverkusen Đức

Máy tự động CNC cho sản xuất pallet Sysmathick RPA9 + Stapler

Hiển thị bản đồ

Thông tin về máy móc

Tên máy:: Máy tự động CNC cho sản xuất pallet

Nhà sản xuất:: Sysmathick

Mô hình:: RPA9 + Stapler

Năm sản xuất:: 2005

Tình trạng:: đã qua sử dụng

Giá & Vị trí

Vị trí:: 51371 Leverkusen-Rheindorf, Deutschland

Gọi điện

Chi tiết về đề nghị

ID tin đăng:: A20679795

Số tham chiếu:: 3256

Cập nhật:: lần cuối vào ngày 04.12.2025

Mô tả

No. 3256

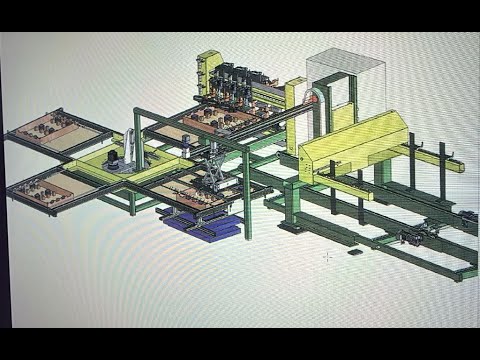

CNC machine for pallet production Sysmathick RPA9 + stacker

Used, year of construction 2005, machine already dismantled

Machine for assembling wooden parts with top and bottom nailing

The RPA9 is a machine with circulation chains for the production of pallets in standard dimensions according to four templates (maximum 1600 x 1400 mm LW)

Operation via a touchscreen
Format changeover within a few minutes

Two programming methods:
- digital programming via PC (input of coordinates)
- Manual programming via touch screen

Storage of tens of thousands of products
Automatic control of the distance between the heads (minimum 290 mm)
Positioning accuracy +/- 1 mm
High adjustment speed (1 m/s)
Bridge with nine nailers (top 3x N58 & 3x N400, bottom 3x N80)
High nailing frequency (one row of three nails per second)
Nailing of multi-level pallets thanks to the heads Equipped with pneumatic cylinders
Pneumatic pressing of the boards during assembly

Minimum pallet dimensions 600 x 300 mm LW
Maximum pallet dimensions 1600 x 1400 mm LW
Maximum template dimensions 1700 x 1600 mm LW
Maximum nailing capacity 1600 x 1400 mm LW
Ffedpfsx Dddxox Ad Tew
Maximum pallet height 190 mm
Minimum pallet height 110 mm
Machine capacity 60 - 200 pallets/hour

Sale on behalf of customer, ex location near 51371 Leverkusen, without dismantling, without transport and assembly
Dismantling, loading and transport by us optionally possible

Errors in description and price excepted

To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Pictures and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or shipment

Terms of delivery: ex location
