Máy ép chỉnh ngang, máy ép ngang; máy ép thủy lực 'được tân trang', máy ép chỉnh ngang, máy ép chỉnh

STENHOJ 40

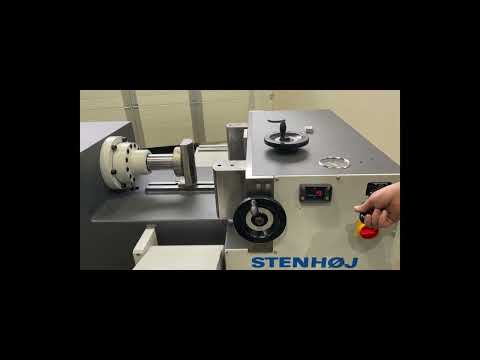

Hydraulic Horizontal Straightening Press, Horizontal Press STENHOJ Type 40
Horizontal hydraulic press for straightening work on steel beams or welded structures
Serial no. 42615 Year of manufacture: 1984
Refurbished in 2025
Pressing force: 40 tons
Ram stroke: 300 mm
Piston rod diameter: 80 mm
Working height: 780 mm (floor to center of piston rod)
Nkodpfxeydqd Hs Afhot
Table size without pressure pads: approx. 1000 x 290 mm
Installation dimension, ram + press block to counter bearing: 260 mm (with pressure pads on ram and counter bearing)
Installation dimension, ram without press block to counter bearing: 440 mm (without pressure pads on counter bearing)
Height of the two adjustable pressure pads: 130 mm
Pressure pad width: 220 mm
Advance speed: 10 mm/s
Return speed: 20 mm/s
Hydraulic tank capacity: approx. 60 liters
Motor power: 3 kW
Power supply: 400 Volt, 50 Hz
- Cylinder stroke operated manually via an actuation lever, sensitive control via mechanical control valve
- Pressing force readable via pressure gauge
- Ram stroke position with actual value display, digitally readable, ideal for precise repeatability of pressure points during straightening
- 2 adjustable counter bearings via threaded spindle (centric parallel adjustment from 290 to 890 mm)
- Straightening tools with rounded pressure faces
- Infeed rollers for material support, centrally height-adjustable via handwheel (roller width = 250 mm)
Required space (L x W x H): 170 x 140 x 100 cm
Weight: 1250 kg
In excellent condition
