Dây chuyền hàn cửa sổ 4 đầu

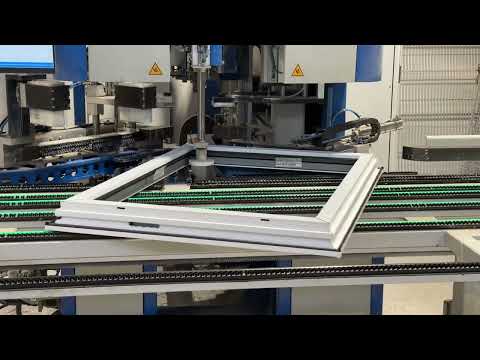

Stürtz TurboLine

The following systems have been processed:

Profile Kömmerling, 76AD, 76MD, 76Unity, 88MD
# High-temperature welding
# Welding strip quick-change system
Spacer quick-change system
Diagonal or parallel joining process
Resilient intermediate plates for tolerance compensation
Heated boundary plates
Weld bead limitation on support and clamping plates
2 mm (optionally 0.2 mm possible)
Heated weld bead limitation
Weld parameters individually programmable
Safety device according to CE
Horizontal outfeed device
Control technology
High-performance JetControl control ensures
high ease of operation
Intuitively operated information management system with
diagnosis and reporting tool
Digital visualization of maintenance intervals
Display of the profiles to be inserted, indication for
profile and spacer changes
Individually programmable welding parameters
Operating system Windows
High-quality PC with 19" TFT monitor
USB ports
DVD drive
# Keyboard and mouse
# Data management via database
Technical data:

Minimum overall depth: 45 mm
Maximum overall depth: 120 mm
Minimum profile face width: 25 mm
Maximum profile face width: 130 mm
Working area: 3,000 x 2,300 mm
Minimum element size: 320 x 320 mm
Maximum element size: 2,600 mm in the running direction
Maximum element size: 3,000 mm width
Maximum element weight: 80 kg
Electrical connection: 230 / 400 volts, 3 phases, 50 Hz
Lodpfez Ep Ezex Adtert
Compressed air connection: 7 bar
# Air consumption: 50 L/min
