CNC Lathe

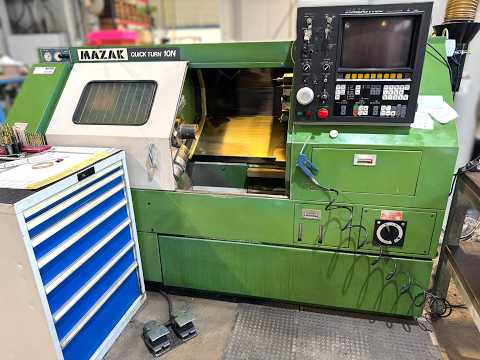

MAZAK QUICK TURN 10N

control MAZATROL CAM T-2
Max. swing diameter 440 mm
Standard machining diameter 150 mm
max. workpiece length 507 mm
x-axis 155 mm
z-axis 540 mm
Itedpfs Aa A Ryox Afgjn
spindle tunring speed 10 - 2.600 U/min
Drive power (30 min) 7,5 kW
Drive power (continuous operation) 5,5 kW
spindle bore 56 mm
spindle taper A2-6
number of tool places 8 Pos.
Tool size 20 x 20 x 150 mm
dimensions 2.550 x 1.440 x 1.720 mm
weight approx. 2.800 kg
Condition: used

The machine does not have a chip conveyor!

Accessories, tools, and clamping devices shown are included in the scope of
delivery
only if this is explicitly stated in the additional information.
Technical data and specifications are subject to change and errors;
subject to prior sale!
