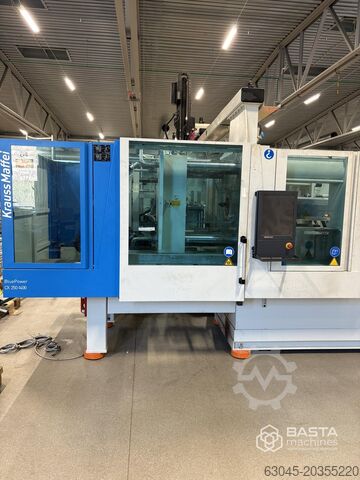

Krauss Maffei KM250-1400CX (2014) màu xanh power LRX150 robot tuyến tính

KraussMaffei KM250-1400CX

Krauss Maffei KM250-1400CX (2014)

Clamping force: 250 t

Screw diameter: 60 mm

Tie bar distance: 630x630 mm

Show weight: 471 g/PS

Shot volume: 518 cm3

Type: Horizontal

Drive: Hydraulic
Ffjdpfxjxqhfys Ad Tjw



Clamping Unit



1. Clamping force: 2500 KN
2. Platen size (H × V): 695 × 1050 mm
3. Tie bar distance: 630 × 630 mm
4. Opening stroke (max.): 630 mm
5. Mould height (min. / max.): 320 / 830 mm



Injection Unit

1. Installed drive power: approx. 87 kW
2. Screw diameter: 55 / 60 / 70 mm
3. Injection pressure: 2387 / 2006 / 1473 bar
4. Injection volume: 417 / 518 / 679 cm³
5. Shot weight (PS): 379 / 471 / 618 g
6. Injection stroke: 210 mm
7. Injection speed (max.): 120 mm/s

Ejector System

1. Ejector stroke: 180 mm
2. Ejector force: 78 kN

General Data



1. Machine dimensions (L × W × H): approx. 6.1 × 2.2 × 2.2 m
2. Machine weight: approx. 14.0 – 14.3 t
3. Total connected load: 87 kW
4. Hydraulic oil capacity: approx. 700 L



_Equipment of the machine:_

1. BluePower servo pump drive system (energy-efficient servo-hydraulics)
2. Hydraulic core pull 1× on operator side \+ pressure release system
3. 8-fold water battery with magnetic valve shut-off
4. Hot-runner control 4 zones (ZE 88.5404)
5. MC6 control with 19″ Touch TFT screen
6. PV-control for injection speed, hold pressure, back pressure
7. Event log / quality monitoring / cycle analysis / maintenance reminders
8. BluePower energy-saving servo drive system



LRX 150 linear robot (payload < 15 kg), incl.:



1. X = 900 mm / Y = 700 + 700 mm (telescopic) / Z = 2000 mm
2. B-servo / C-pneumatic rotation axes
3. Full integration (MC6 control interface)
4. Safety package – fencing, emergency stop, key switch
5. Vacuum circuits × 4 (Venturi)
6. Transport conveyor interface & control circuit
7. CE conformity declaration for integrated system (IMM + Robot)
8. Painted RAL 9002 grey-white / Pantone 3005 blue



2014

Running hours: 42.084
