Rơ moóc bán mở với bạt phủ

KÖGEL S24 SafeServer RSAB Quickslide Liftachs Paletten

Kögel S24-1 Safe-Server, RSAB System, double-sided Fast Quickslider side roof tarpaulins, floor pallet stop strips with Variofix stop strips with hole pattern, Vario-Fix perforated outer frame, partial cargo securing package for rear load securing consisting of 2 roof guide rails along the entire length right and left, 2 integrated vertical load bars, 3 sprung crossbars, double-sided Quicklock fast-release side tarpaulins, pallet box, BPW axles, axle lift system on axle 1, fully automatic load-dependent axle lift control. Start-assist: activation via 3x brake application, 30% overload up to a speed of 25 km/h.
2 plastic toolboxes
EBS system 2S/2M with stability program (includes ABS/ALB function)
Kögel Telematics System BasicTrailer incl. location monitoring, coupling status, EBS data
- Certificate for load securing according to EN 12642 XL (VDI 2700).
- Beverage certificate according to VDI 2700 Sheet 12
- "Daimler Load Securing DL 9.5" certificate
- Certificate for waste paper transport

Very well-maintained, rarely used trailer, original net price: €41,900

Technical data:
Technically permissible total weight: approx. 39,000 kg
Basic equipment curb weight: approx. 6,870 kg
Curb weight of individual vehicle configuration approx.: 6,333 kg
Load area length int.: approx. 13,620 mm
Load area width int.: approx. 2,480 mm
Clear loading width rear: approx. 2,480 mm
Loading height unladen in horizontal drive position: approx. 1,220 mm
Loading height laden in horizontal drive position: approx. 1,190 mm
Ride height set to 290 mm
Side clear loading height int.: approx. 2,560 mm
Internal height under roof: approx. 2,760 mm
Front overhang (according to ISO 1726): approx. 1,685 mm
Front overhang radius (according to ISO 1726): approx. 2,040 mm
Rear swing radius (opposite to ISO 1726): approx. 2,100 mm
Fifth wheel coupling height: approx. 1,130–1,190 mm

Chassis:
Axle lift system on axle 1
Fully automatic, load-dependent axle lift control. Start-assist: activation via 3x brake, 30% overload up to 25 km/h.
BPW three-axle unit, with disc brakes Ø 430 mm, ET 120. Air suspension with 180 mm stroke.

Tyres:

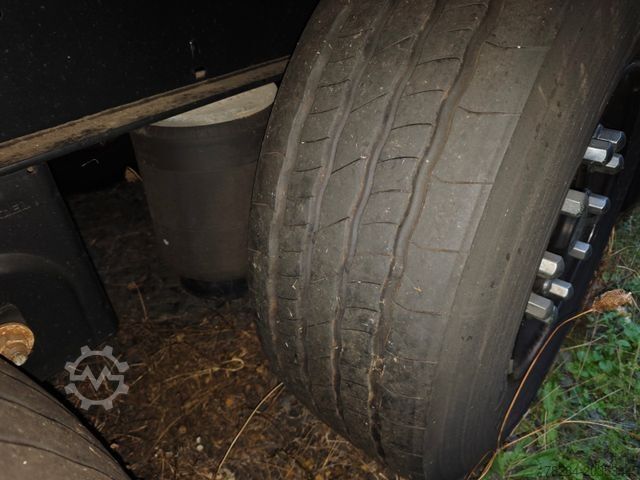

6x 385/65 R 22.5, 160J tyres (European brand of Kögel’s choice).
Steel rims 22.5 x 11.75, offset 120 mm (ET 120).

Documents:
- Certificate for load securing according to EN 12642 XL (VDI 2700).
- Beverage certificate according to VDI 2700 Sheet 12
- "Daimler Load Securing DL 9.5" certificate
- Certificate for waste paper transport

TECHNICAL DETAILS
Gross weight: 39,000 kg
Kodpfx Acexqfqgjzonc
Unladen weight: 6,870 kg
Max payload: 32,670 kg
Axle configuration: 3
Axle wheelbase: 6,390 mm
Cargo area length: 13,620 mm
Cargo area width: 2,480 mm
Cargo area height: 2,710 mm
First registration: 11/2023
Suspension: air
Colour: black
Tyre size: 385/65R22.5
Equipment: ABS, EBS, telematics

Original net price: €41,900

A full list of equipment will be sent on request.

Despite utmost care, errors within this advertisement cannot be ruled out. Subject to errors and prior sale! More information on request.
