Máy phay giường CNC Juaristi - ML-3

Juaristi ML-3

Travelling Column High performance, precision and machining power
Lhedsyr Dmdepfx Aatek
Linear guiding of RAM combined with Hydrostatic Guiding HDS

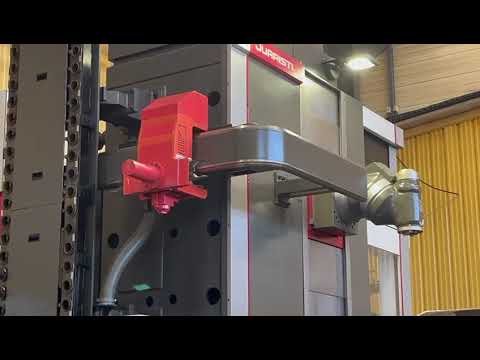

ACD2 Milling head with 5000 Rpm and 1400 Nm torq
Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg
Filtration with IKZ 15 Bar
Chip conveyor
BLUM 3D Measuring probe
Wide bed linear guided in X-Travel W=930 mm
Rotary table driver prepared in E-Cabinet
X-Axis: 8000mm
Y-Axis: 1300mm
Z-Axis: 2500mm
Table Length: 10000mm
Table Width: 1250mm
Power on spindle: 40kW
Spindle speeds: 5000Rpm
Spindle Taper: 40ISO/Bt/Mk
Feed rate X-Axis: 35000mm/min.
Feed rate Y-Axis: 40000mm/min.
Feed rate Z-Axis: 40000mm/min.
Millinghead auto-index:0.001 x 0.001 Gr°
Working hours: 3800H
Length: 13500mm
Width: 5800mm
Height: 4500mm
Weight: 45000kg
