Ganner / Gannomat Master 325

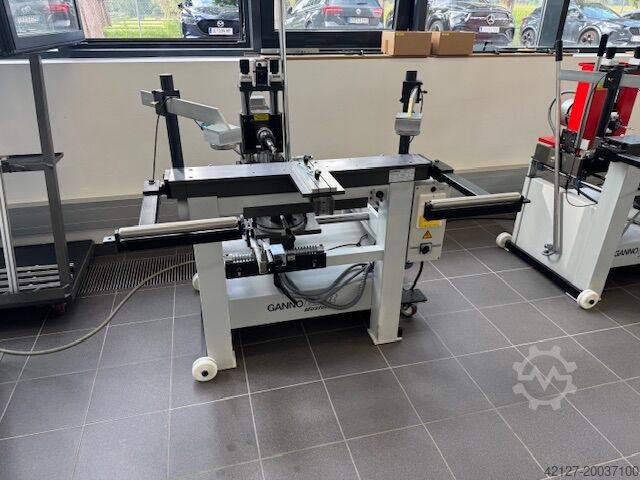

GANNOMAT "MASTER 325" FRAME DOWEL AND MORTISE BORING MACHINE
Specifically designed for staircase construction
Complete in standard configuration according to price list 01/19/D, featuring:

- Precision collet chuck for ER40 collets Ø 3-26 mm, incl. collets Ø 10 / 13 / 16 / 20
Dodpfxoxdttps Agqjkg
- Pole-switchable motor 1400/2800 rpm, 1.5 kW
- Line laser with bracket
- Boring unit, continuously rotatable from the front (65°-0°-65°)
- Position setting via digital counter
- Position adjustment for 2 levels, pneumatic (0-100 mm)
- Maximum boring depth 200 mm
- Precision indexing rail with 12 mm pitch with central detent and lateral adjustment 320 mm
- Complete stop system consisting of:
1 center stop and 1 stop for oversized frames
1 stop rod, approx. 850 mm long (can be reversed from left to right)
2 flip stops
- Mortising unit lowerable, with 2 program cams (400V, 3Ph, 50Hz, 1.5 kW)

Extraction funnel, dust-tested, Ø 80 mm

Double miter stop adjustable from 0°-60°

Pneumatic clamping of the X-axis with on/off switch at the indexing handle

Pair of auxiliary workpiece supports, swiveling (left and right)

Clamp column re-positionable to the front

Chassis with 4 wheels for easy machine movement

1 piece
Collet extension Ø 20 mm, incl. collet for drill shank Ø 9 mm

1 piece
Baluster drill bit Ø 25 mm, chrome steel, with centering tip

Available: at short notice
