Máy phay vạn năng với màn hình số chủ động, máy phay vạn năng, máy khoan-phay

DECKEL FP 1 - AktivDigital

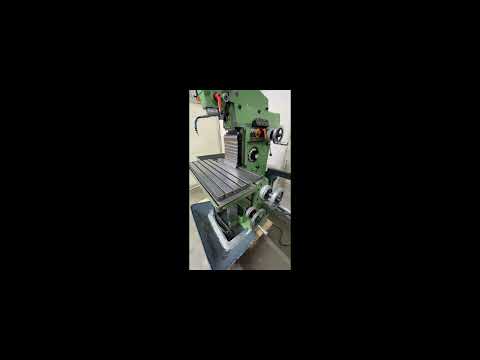

Universal tool milling machine with active digital display DECKEL Type FP 1
Universal milling machine
Machine No. 2102 - 3351 Year of manufacture: 1986
Travel X: 300 mm Y: 150 mm Z: 330 mm
Table size: 600 x 210 mm
Spindle taper: SK 40 - S20x2
Spindle speed: 40-2000 rpm, 16 steps
Feed rate: 5 to 500 mm/min
Rapid traverse: 1200 mm/min
Motor power: 1.6 and 2 kW, pole-changeable
Pgsdpfx Agjyxy Swemei
Power supply: 380 Volt, 50 Hz
- Active digital readout for 3 axes HEIDENHAIN Type TNC 113
- Infinitely variable feed via servomotor in X, Y, and Z axis
- Spindle speed via 2 motor speeds and 8 gearbox steps
- Quill travel on the vertical milling head: 60 mm
- Vertical milling head can swivel and extend horizontally by 100 mm
- Fixed angle table 600 x 210 mm
- Coolant system integrated into machine base
- Free-standing control cabinet
- Original chip tray for placing on machine base
- Operating manual, electrical diagram, spare parts list available in PDF format
Space requirement (L x W x H): 1350 x 1100 x 1700 mm
Weight: 830 kg
Good condition
