Trung tâm gia công BACCI DOUBLE

BACCI DOUBLE

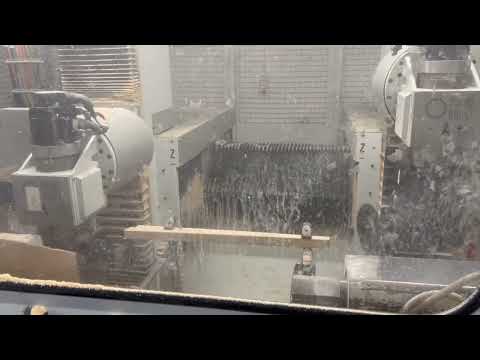

BACCI DOUBLE is a double head CNC machining center with 10 interpolated axes, numerically controlled, equipped with automatic hopper feeder. DOUBLE is designed for joinery operations as: tenoning, finger jointing, boring, mortising, milling, both at the ends of the elements and also between the ends.
• Serial number AB 059,
• 380 V, 50 Hz, 50 kW,
• OSAI control,
• Axes
o X-axis 2400 mm,
o Y-axis 650 mm,
o Z-axis 1000 mm,
o A-axis 360°,
o B-axis 260°,
• Machining dimensions: L min. 150 mm, L max. 2400 mm, W max. 250 mm, H max. 100 mm,
• Input speed X, Y and Z axes 50 m/min,
• Max. tool diameter 200 mm,
• 4 tool positions per machining side,
• 2 pneumatic clamps,
• Spindle taper ER 32,
• Spindle information right side: Speed 12000-24000 rpm, Power 7.4 kW,
• Spindle information left side Page: Speed 12000-24000 RPM, Power 7.4 kW,
