Đường bào bao gồm cả đường quay lại

Weinig Unimat / Uniplan 23

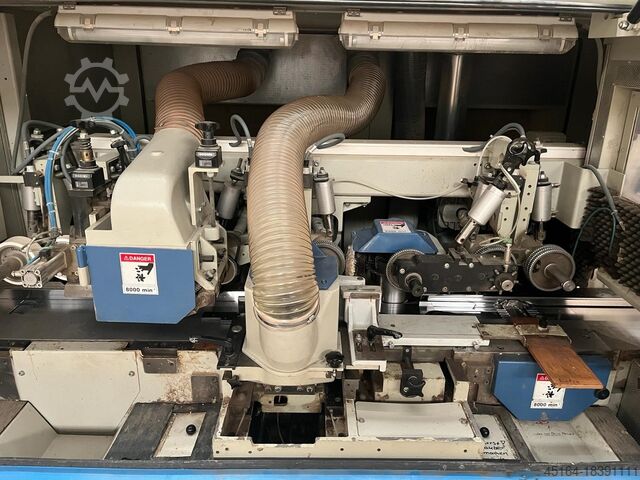

Unimat 23 E: Working width (with cutter circle 140 mm): 20 – 230 mm. Working height (with cutter circle 163 mm): 8 - 120 mm. 1st spindle lower horizontal spindle: 7.5 kW, 2nd spindle right vertical spindle: 11 kW (shared with left vertical spindle), 3rd spindle left vertical spindle, 4th spindle upper horizontal spindle: 7.5 kW. Each spindle diameter: 50 mm. Each spindle speed: 8,000 rpm. Feed system: 4 kW. Mechanical feed, steplessly adjustable: 5-24 m/min. Working table: 2.5 m long (incl. joining fence).

Uniplan 23: Max. working width: 230 mm. Working height min.: 15 mm / max.: 120 mm. Feed: 3 kW. Horizontal spindles each 5.5 kW. Feed speed, steplessly adjustable: 6 – 36 m/min. Spindle speed: 6000 rpm. Spindle diameter: 50 mm. Tool clamping length: 240 mm. Max. tool diameter: 163 mm. Fixed lower chip removal: 0.5 mm. Short piece package for min. workpiece length: 280 mm. Mechanical spindle brakes up to 7.5 kW. Feed braking system up to 5.5 kW. 1st feed roller synchronized with photocell. Spindle speed 7200 rpm, incl. motor power 7.5 kW. Improved noise insulation of the full safety enclosure.
Dedpovvkcisfx Agqjkg

Location: Customer
