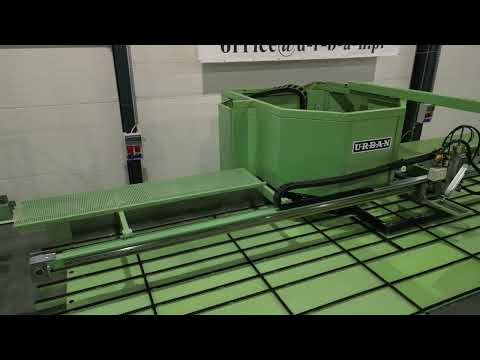

Four- head welding machine

Urban Complete Cleaning and welding line AKS

Cleaning and welding line URBAN- AKS 1610+TBA+SV 530/WT 530
Operating direction: right to left.
The entire line is 6200 mm wide and 14500 mm long.

AKS 1610: weld bead limitation 0.2 mm
- Horizontal 4-head welding machine for vinyl window profiles at a 90º angle.
- Equipped with an integrated discharge system for conveying to cleaning machines.
- Electronic positioning.
- SPS central control with keyboard and display.
- PLL parallel welding system – as standard, increases corner strength by up to 20%.
- Dimensions of welded elements:
min. 410 x 370 mm (width X height Y)
max. 3500 x 2300 mm (width X height Y)
- Equipped with a gasket moulding system for 4 welding heads.

TBA Conveyor table (between welder and cleaning machine)
- Width 2600 mm, length 3500 mm, 8 guide rails.

Driven, for automatic production lines.
Electrically-driven conveyor table, transport belts
with velour or super grip coating.
Linking of several conveyor tables is possible.

SV 530 CNC corner cleaning machine
- Up to 17 tooling locations.
- 2 axes.
- PC with freely programmable CNC control, programmed on screen.
- Simple programming of machining steps in group mode, single program selection, list, or automatic.
- User-friendly diagnosis and service routine.
Standard equipment:
- Inner frame stop
- 2x cutting/grooving knife unit NO/NU
- 1x disc cutter with a saw blade 5mm (SF)
- 2x inside grooving knife unit IO/IU
Profile height: min. 30mm, max. 130mm/200mm
Profile width: min. 20mm, max. 150mm
Cedpjrunl Hefx Aqteri
Inner frame dimension: 210mm x 210mm
Incl. turning device WT-530
Dimensions: width: 6200 mm, length: 14500 mm

Completely refurbished, 6-month warranty on parts. Ready for operation.
Available for inspection at the company's headquarters.
