LAS 28 XLe - Laser sợi quang 30 watt

Systemtechnik Hölzer GmbH 30 W LAS 28 XLe / Extra großer Innenraum

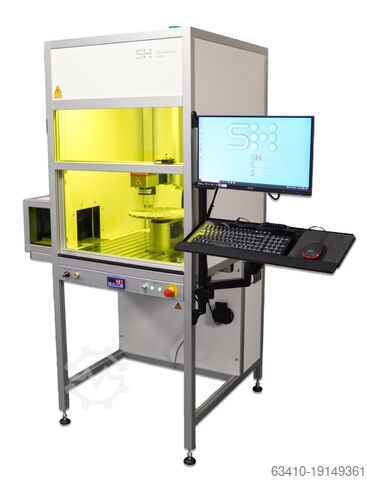

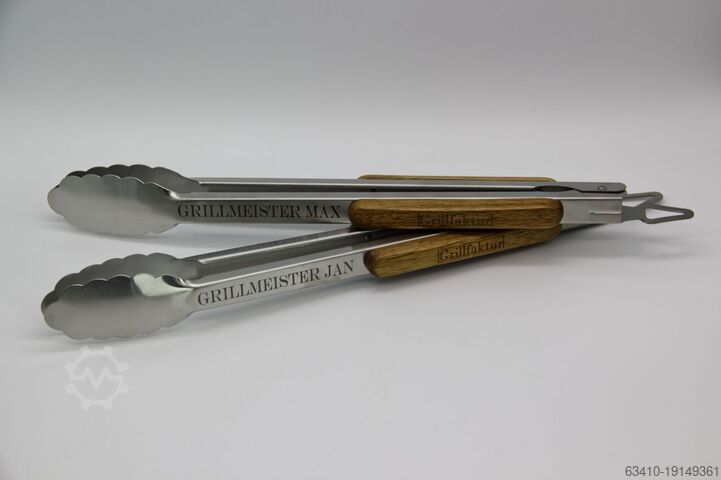

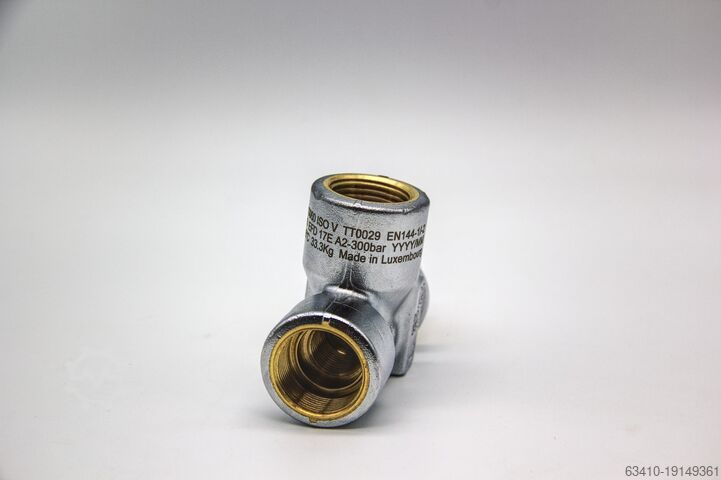

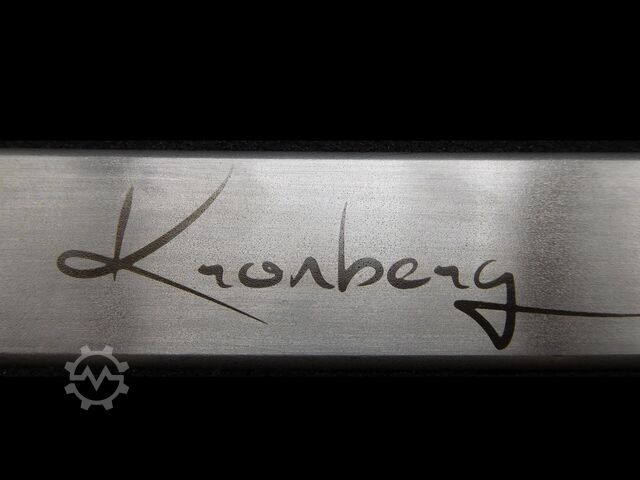

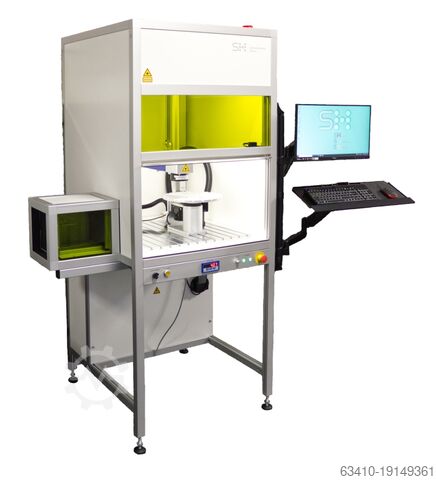

The universal LAS 28 XLe laser marking system from Systemtechnik Hölzer GmbH can be used for a very wide range of marking applications. With the integrated fiber laser, you can mark almost all materials such as steel, hard metal, aluminium and plastics.
Depending on requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of a laser has become indispensable in many industries.

With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be created with just a few clicks and without extensive programming knowledge. The software automatically counts up serial and article numbers once they have been set. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer it to predefined areas. The use of a hand scanner is also possible.

The standard equipment includes an integrated PC with Windows operating system and laser software. The LAS 28 XLe laser model can optionally be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts. Other options, such as lateral cantilevers for marking long parts, movable Z-axis, drawer systems, etc., can also be implemented. Programmable, software-controlled axes (X-, Y-, Z-axis) and database connection are also possible.

Made in Germany

Fiber laser 30W, 20 W or 50 Watt
- Laser class 1
- Wavelength 1064nm
- Marking field size 150x150mm (optionally larger)
- marking software EZCAD in German / English
- optional: rotary axis (3-jaw chuck)
- optional: digital height measuring system
- optional: exhaust system (incl. activated carbon filter)
- optional: autofocus system - system for automatically determining the focus distance
Fsdewkpvvjpfx Ad Tefw
- pilot laser (simple preview, contour preview)
- focus finder (simple focus adjustment)
- signal light for indication of operating status
- max. component height approx. 300mm
- electrically adjustable Z-axis
- Integrated PC with Windows operating system
- frame made of aluminum profile
- air cooled
- Door width approx. 700mm / door height(pass-through): 400mm
- Connection 230V
- Dimensions: approx. 900 x 800 x 1900 mm (LxWxH)
- Weight: approx. 120 Kg
