Ryobi 520HE with Numbering and Perforating UN

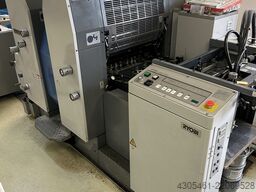

RYOBI 522HE 2-Color Offset Press with NP52 Numbering & Perforating Unit – 2007

Well-maintained RYOBI 522HE two-color B3 sheetfed offset press, manufactured in 2007, equipped with an NP52 numbering and perforating unit.

This is not just a standard 2-color offset press. With the NP52 unit, the machine is particularly suitable for numbered forms, tickets, vouchers, perforated products, business forms, and commercial printing jobs where inline numbering or perforation is required.

The machine is equipped with:

NP52 numbering and perforating unit
Ryobimatic dampening system
Technotrans cooling unit
Grafix Digitronic powder spray
Semi-automatic plate change
Low-pile delivery
2-color B3 sheetfed offset configuration

Main technical data:

Max. sheet size: 520 × 375 mm
Max. sheet size with NP52 unit: 520 × 365 mm
Min. sheet size: 100 × 105 mm
Min. sheet size with NP52 unit: 257 × 182 mm
Max. printing area: 505 × 350 mm
Plate size: 510 × 400 mm
Paper thickness: 0.04 – 0.40 mm
Speed: up to 11,000 sheets/hour
Speed with NP52 unit: up to 8,000 sheets/hour

Counters:

Total print impressions: approx. 20.64 million
Machine counter: approx. 30.28 million

Lodpfx Aezbuk Eokljrp
Electrical data:

200 V / 50 Hz / 3-phase
Power consumption: 7.5 kW
Current: 27 A

Dimensions and weight:

Dimensions: 2,598 × 1,955 × 1,588 mm
Weight: approx. 3,350 kg

The machine is located in Budapest, Hungary, and can be inspected by appointment.
