Máy ép phun

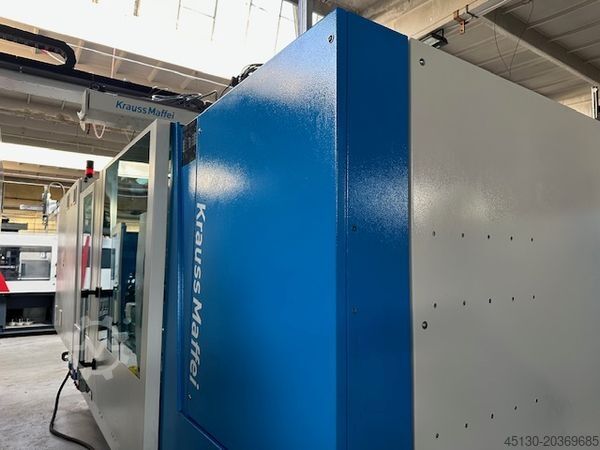

Krauss Maffei KM 200-750 CX

Krauss Maffei KM 200-750 CX with the Wittmann-Krauss Maffei LRX100-1811 robot
Year of construction: 2014

Injection unit:
Screw diameter: 45 mm
Injection weight: 289 g
Injection pressure: 2336 bar
Metering volume: 318 ccm

Clamping unit:
Clamping force: 200 t
Distance between tie bars: 560x560 mm
Size of the clamping platens: 915x915 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: MC6 - touch screen

Additional equipment:
Very good technical condition
Operating hours: approx. h in automatic mode
Euromap 67
Robot interface
Min. tool installation height - 350 mm
Air valve x 2
Hydraulic core pull x 2
Control unit with hot runners x 24
Hardened injection unit - bimetal
Parallel movements
Proportional valve on the injection unit - Precise injection
Kistler sensor - mold pressure control
Wittmann-Krauss Maffei LRX100-1811 robot
Year of construction: 2014
High-speed robot
5-axis robot: 3 axes are driven by servomotors (electric); axes B and C - pneumatic
Touch control panel
Lsdpsxqykzsfx Aczjhn
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and conveyor belt for an additional charge

Dimensions
Weight: 11500 kg
Length/width/height: 5.32x1.98x2.06 m

All offered machines are started by our service technicians before sale.
It is possible to obtain a video of technical tests of the selected machine or participate in live technical tests at our company in Łódź.

Price: On request
