Máy ép phun

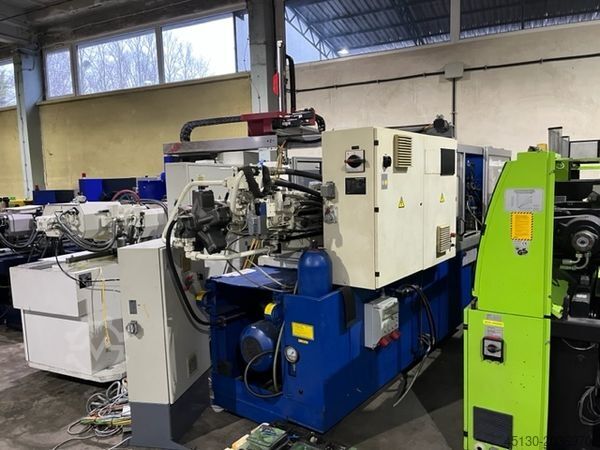

Krauss Maffei KM 110-700 C2

Krauss Maffei KM 110-700 C2
Year of manufacture: 1998

Injection unit:
Screw diameter: 45 mm
Injection weight: 278 g
injection pressure: 2336 bar
Metering volume: 305 ccm

Clamping unit:
clamping force: 110 t
tie bar distance: 470x470 mm
size of clamping platens: 745x770 mm
ejector: hydraulic
clamping unit: hydraulic

Control system: MC IV

Additional equipment:
Machine in very good technical condition
Euromap 12
Robot interface
Lsdpfxjxqylle Aczehn
Air valve x 1
Hydraulic core pull x 1
Control with hot runners x 12
Injection unit hardened - bimetal
Parallel movements
Proportional valve on the injection unit - precise injection
Machine with cylinder / battery with compressed nitrogen (additional charge for fast work)
The machine has been regularly serviced by the authorized service Krauss Maffei in Switzerland

Dimensions:
Weight: 6200 kg
Length/width/height: 4.66x1.51x2.19 m

Propulsion:
Pumps/motor: 18.5 kW
Heating power: 16 kW
Total power: 34,5 kW

All offered machines are started by our service technicians before sale.
It is possible to get a video of technical tests of the selected machine or participate in live technical tests in our company in Łódź.

Price: Upon request
