CERMEX PAL-VITE 410, TOSA 215 Máy xếp và quấn pallet (2016)

CERMEX Palettierer & Wickler

Overview

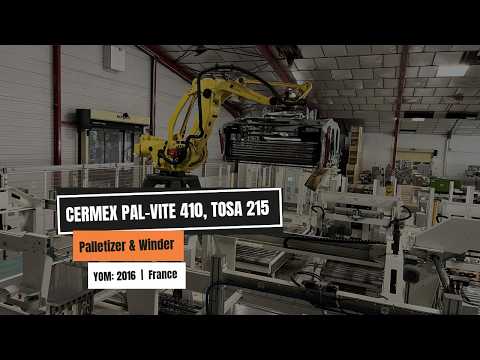

Complete robotic end-of-line system from a wine bottling plant, built in 2016. It currently runs at 16,000 bottles per hour and is capable of up to 24,000 bottles per hour. Packed cases arrive on the infeed conveyors, are prepared into layers and stacked onto pallets by a CERMEX PAL-VITE 410 robot palletizer with a FANUC M-410iB robot. The full pallets run on the CERMEX pallet conveyors and transfer shuttle through a TOSA 215 rotating-arm stretch wrapper and a SEGEPAR print-and-apply pallet labeller to the accumulation conveyors. The system is still installed and under power and can be inspected.

Technical data

- Line output: 16,000 bottles per hour in current operation, up to 24,000 bottles per hour
- Robot palletizer: CERMEX PAL-VITE 410, FANUC M-410iB robot with layer gripper, 12/2016
- Palletizer load ratings: 255 kg per layer, 540 kg empty pallet stack
- Palletizer connection: 400 V, 3 phases, 50 Hz, full-load current 110.75 A
- Full-pallet handling: CERMEX, 400 V, 3 phases, 50 Hz, full-load current 20.38 A, 12/2016
- Stretch wrapper: TOSA 215, rotating arm, 2016
- Pallet labeller: SEGEPAR LOGITRON 910, 220 V, 50 Hz, compressed air 6 bar / 200 l/min, industrial PC control, 2016
- Operation: CERMEX touch-screen HMIs, safety fencing with interlocked access doors and light curtains

Scope of Delivery

- Case infeed and layer preparation | CERMEX | case conveyors with layer-forming stations | 2016
- Robot palletizer | CERMEX | PAL-VITE 410 | FANUC M-410iB robot with layer gripper, empty pallet magazine | 2016
- Full-pallet handling | CERMEX | roller conveyors, transfer shuttle and accumulation conveyors | 2016
- Stretch wrapper | TOSA | 215 | rotating arm | 2016
- Pallet labeller | SEGEPAR | LOGITRON 910 | print-and-apply | 2016
- Control cabinets, operator panels and safety fencing of the installation

Chodpfxjz Iy Hbj Ailjc
Condition

Used, still installed and under power. Inspection possible by appointment.

Availability

Available immediately. Location: France. Dismantling and loading by the buyer (EXW).
