AVB MACHINERY LLC AVB-PGM630

AUTOMATIC PLANING KNIFE GRINDING MACHINE
Knife Grinding Length is 630 mm

AVB-PGM630 is specially designed to grind the planer knives up to 630 mm in length for wood, metal, and paper industries. It is constructed with a linear rail block system for high efficiency and long life. Knives mounted on the plate could be rotated +/- 90 degrees. Also, complete with its multiple knife mounting attachment, it is possible to grind at most five pieces of planer knives at one time. There are 11 various speeds up to 11 mt/min with a microprocessor control coolant ready system.

Nodpfjzwm Duex Ab Heda

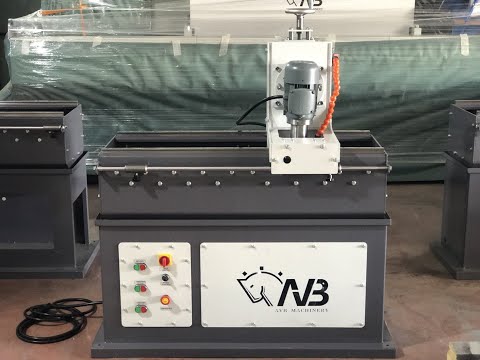

AVB-630PGM

AUTOMATIC PLANER KNIFE GRINDER
Equipped with a CNC linear Bearing system


AVB-630PGM is specially designed for grinding the planer knives up to 60 cm in length. Complete with a multiple knife mounting attachment system. It is possible to grind at most five pieces of planer knives at one time.

GENERAL FEATURES
• Automatic planer knife grinding up to 600 mm
• Speed control between 0-11 Mt/min.
• Mechanical knife attachment
• Microprocessor Controlled
• Grinding Head riding on linear rails
• High precision of 0,02 mm infeed amount
• Non-corroding and hardening plating on all mechanical components
• CNC bearing system extends machine lifetime and enhances the grinding quality
• Possibility to attach a maximum of 5 pieces of blades on the same plate
• Rigid machine base
• Production confirmed with CE standards

TECHNICAL SPECIFICATIONS
• Grinding Length 600 mm
• Plate dimensions 60*80*600mm
• Grinding Wheel Diameter Ø100/150mm
• Motor Quantity 3
• Grinding Speed 0-11m/min.
• Automatic Infeed 0,02mm
• Operating Voltage 380 V ,50-60 Hz, 3 Phase
• Coolant Tank Capacity ͠ 30 Lt.
• Net/Gross Weight 430/450 kg
• Dimensions 60*160*140 cm


MOTORS on THE MACHINE Grinding Wheel
• Grinding Wheel 1,1 KW- 2800 rpm D:Ø100/150 mm
• Coolant 0,09KW-2800 rpm d:Ø20 mm
• Grinding head horizontal movement 0,37KW-2800 rpm H:60-80mm
