Silo nhôm 105 m³ ø 3,000

Zeppelin

Aluminum silo (plastic granulate silo) standing on a base ring – used – designed for a bulk density of 1.0 kg/dm³
Hnsdpfx Agjlg Dcfo Dsu

Volume: 105,000 liters
Manufacturer: Zeppelin
Available quantity: 1
Diameter: approx. 3,000 mm
Cylindrical height: approx. 17,500 mm
Overall height: approx. 15,000 mm (including 1,250 mm roof edge railing)
Material: AlMg3
Bulk density: 1.0 kg/dm³

Inclination of the upper floor: 15°
Inclination of the cone: 60°

Equipment and connections:

In the upper floor:
1 x access dome DN 500 with hinged cover
1 x ventilation opening with hood
2 x flange DN 100 PN 10 (filling + level indicator)
1 x stub for full-level indicator
1 x roof edge railing with handrail
2 x crane eyes

On the shell:
1 x access door 850 x 2000
8 x pipe support for filling pipe DN 100
1 x filling pipe DN 100
1 x cable duct
1 x stub for full-level indicator

The silo ends at the bottom in a 60° cone with a flange DN 200 (discharge height: approx. 500 mm) and a suction box.

The currently connected measuring and control technology is included. However, no guarantee is given for its function!

Additional cost:
The silo has a two-part ladder with back protection and a landing platform (additional cost: €950 plus VAT).

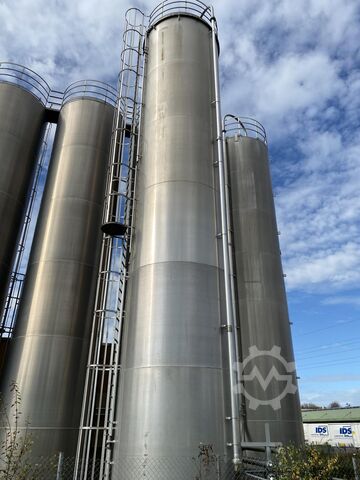

Otherwise, as shown in the pictures and drawing.
