Profruit Machinery Bottle Filling and Capping

Automatic monoblock machine for filling and capping juices, wine, oil and other liquid products in glass or PET bottles. Filling and capping are combined in one compact unit with a production capacity of up to 800 bottles per hour, depending on bottle size and product characteristics.

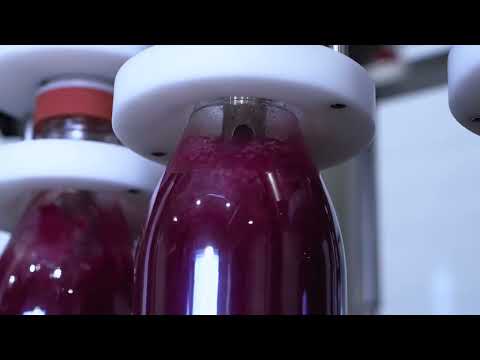

Bottles are fed by a starwheel, filled by five precision filling heads and transferred directly to the capping station. The capping system supports multiple cap types and provides adjustable torque. A No Bottle, No Fill function helps prevent product loss.

Features and technical details
• Capacity: up to 800 bottles per hour
Dsdpfx Akjz Nd Hiokscn
• Five-head filling system
• Typical bottle volume range: 250 ml to 2 L
• Suitable for different glass and PET bottle shapes and sizes
• PLC control with touchscreen interface
• Frequency-controlled drive with inverter for smooth speed adjustment
• Adjustable cap torque
• Suitable for hot or cold filling of fruit juices
• Also suitable for wines, spirits, oils and other liquids

The machine is manufactured from stainless steel and food-grade materials. Its enclosed stainless-steel frame helps protect the product from external contamination while supporting hygienic and safe operation.
