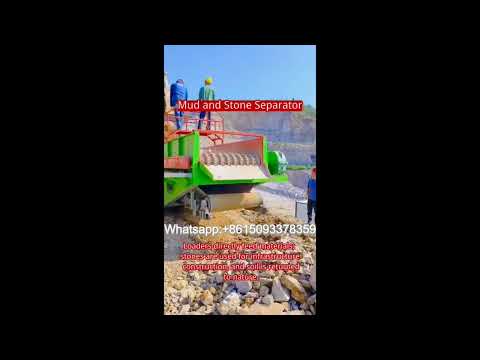

Crawler Mobile Mud Stone Separator – Model MYC1500×6000F400O
The MYC1500×6000F400O Crawler Mobile Mud Stone Separator is a high-performance soil and stone separation machine developed by Henan Mingyuan Heavy Industrial Equipment Co., Ltd. It is designed for efficient separation of clay, mud, and fine soil from mixed materials such as sand, gravel, and construction waste. With its crawler-type mobility, large-capacity drum screen, and intelligent control system, this model provides a flexible and reliable solution for material cleaning and classification in complex working environments.
Applications
The MYC1500×6000F400O is widely used in:
Sand and gravel production: Removes clay and impurities from raw aggregates, improving product quality.
Construction waste recycling: Separates soil and debris for reuse of clean aggregates.
Mining and quarrying: Pre-screens and washes ores, removing sticky soil before crushing or beneficiation.
Blodpfxjy Dz U Ds Ag Dop
Infrastructure and road construction: Cleans and classifies soil and stone for foundation preparation.
Municipal and river dredging projects: Separates sediment, stones, and debris from dredged materials.
Its crawler chassis allows easy movement on muddy or uneven ground, making it ideal for on-site operations where fixed installations are not practical.
Main Features
1. Crawler Mobile Design
Equipped with a heavy-duty crawler chassis and hydraulic drive, the machine can move flexibly on various terrains. It eliminates the need for additional transport equipment, reducing setup time and improving efficiency.
2. High-Efficiency Drum Screening
The 1500 mm diameter and 6000 mm long rotary drum provide a large screening area and high throughput. The wear-resistant mesh panels ensure long service life and easy maintenance. The optimized screen aperture effectively separates mud and fine soil from larger aggregates.
3. Integrated Cleaning System
Internal spiral blades and high-pressure spray nozzles work together to wash and separate sticky materials. This dual-action cleaning ensures clean aggregates that meet construction and production standards.
4. Intelligent Control
The PLC control system allows adjustment of drum speed, water flow, and feed rate according to material conditions. Automatic overload protection and fault alarms enhance safety and reliability.
5. Energy-Saving and Eco-Friendly
The hydraulic-electric hybrid drive reduces fuel consumption and emissions. The water recycling system minimizes water usage, making it suitable for environmentally sensitive areas.
6. Easy Maintenance
Modular design and accessible components simplify inspection and servicing. Quick replacement of wear parts reduces downtime and maintenance costs.
7. Strong Adaptability
Capable of handling clay-rich soil, river sand, construction debris, and weathered rock. Adjustable screening parameters make it suitable for different particle sizes and moisture levels.
Technical Parameters Specification
Model:MYC1500×6000F400O
Screen Typ: roller screener
Roller screener width/:1500 mm
Roller Screener Length:6000 mm
Feeding Size≤ 600 mm
Capacity: 80–300 t/h (depending on material)
Power System
Diesel engine + hydraulic drive
Mobility:Crawler-type chassis
Control System
PLC intelligent control
Water System
High-pressure spray, adjustable flow
Discharge
Dual outlet for clean stone and mud
Weight :Approx. 22 tons
Dimensions (L×W×H):9,800 × 2,800 × 3,200 mm
