Bình phản ứng hóa học 4870 lít có chức năng gia nhiệt/làm mát, Aisi 316 với bộ khuấy chống nổ 15 kW.

6941

Location: Bremen
Condition: used
Volume: 4,870 liters
Vacuum: 1.00 bar
Max. overpressure: 2.50 bar
Tank

Max. operating temperature (tank): 130°C

Design: suspended
Tank

Stand type: frame supported

Heating/cooling: available
Double jacket volume: 530.0 liters
Max. permissible operating overpressure: 2.5 bar
Max. permissible operating temperature: 130°C
Jacketed cylinder: double jacket
Heating/cooling jacket

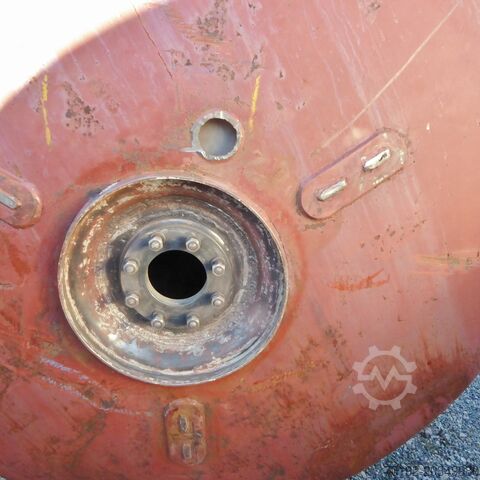

Jacketed bottom: double jacket

Inner diameter: 1,800 mm
Outer diameter: 1,900 mm
Cylindrical height: 1,420 mm
Total height: 4,300 mm
Technical data / Dimensions

Bottom wall thickness: 8 mm

Cylinder wall thickness: 8 mm
Technical documentation: Drawing, TÜV papers
Equipment

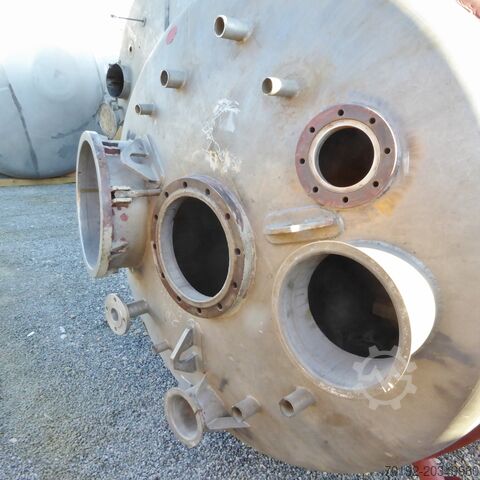

Manhole / dome: in the top head (DN 500)
Outlet (alternative indication): 120 mm
Note: Handhole cover missing
Kjdpfx Asxqba Roczjnc

Remarks: Bottoms extend beyond ends of the frame; type plates not present; 1 tank with dent in double jacket; heating connections cut off
Last application: Chemicals
Product-contacting material: V4A 1.4571 (AISI316)
Double jacket material: steel
Agitator

Agitator manufacturer: Ekato

Power: 15 kW
Agitator: propeller type
Agitator

Voltage: 400/690 V

Explosion protection: Motor is explosion-proof (compliance with applicable ATEX directives under local conditions must be verified)
No. of agitators: 1
Agitator

Agitator positioning: eccentric in the top head
Agitator equipment: Only motor/gearbox units and 1 agitator shaft without propeller included
