Bàn cắt kính

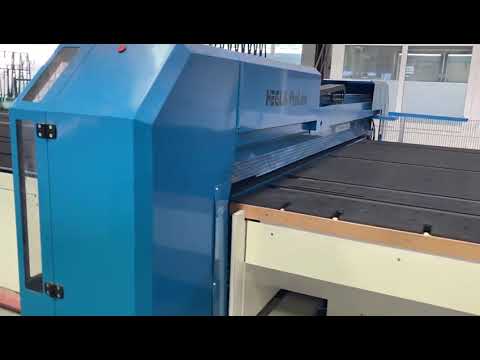

Hegla VSG ProLam

• Machine No.: 2529
• Year of manufacture: 2021
• Automatic positioning stops for length adjustment
• CNC control system with operator guidance via monitor
• Integrated cutting plan display
• 2 special cutting heads for laminated glass (VSG) cutting
• Lower cutting head can be deactivated for float glass cutting
• Automatic cutting oil supply for both upper and lower cutting heads
• Cutting oil canister with fill level monitoring
• Automatic breaking roller for opening the lower cut
• Lowerable take-off table for opening the upper cut
Bjdpfx Ajw Uptzef Dslk
• Separation device with hold-downs, also suitable for LOW-E coated glasses
• Continuous special heating element beneath, swiveling
• Thermal-mechanical separation device for dividing multiple interlayers
• Cut line marking for diagonal cuts by visible laser
• Glass flow direction: right to left
• Maximum cutting length VSG: 3700 mm
• Maximum glass size: 6100 mm x 3210 mm
• VSG glass thickness: 2x3 to 2x8 mm
• Interlayer thickness: 0.38 to 3.8 mm
• Working height: 940 mm +/- 20 mm
• Cutting speed: 90 m/min
• Cutting accuracy: +/- 0.5 mm
• Length alignment: 25 mm to 3700 mm
• Automatic length alignment: min. 230 mm x 800 mm
• Operator-side turning device
• Price on request
