Máy xúc mini GG1100 3 xi lanh Kubota

Gunter grossmann GG1100 3 cilinder kubota

GG1100

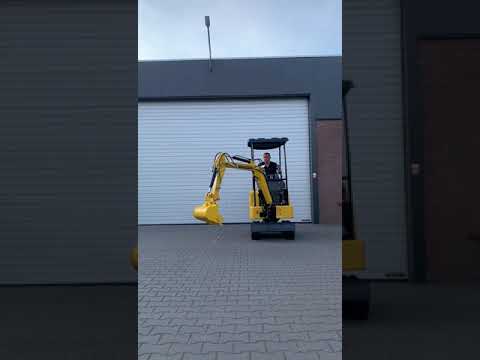

The mini excavator GG 1100 with 3 cylinder Kubota engine is a 1T weighing machine with a swivel frame/knuckle boom and adjustable chassis.

Description

The latest model GG1100 from Günter Grossmann Each machine from Günter Grossmann is composed of quality parts. The GG1100 model is a well-equipped machine for the most demanding contractors in construction, electricity and hydraulics. Excavators are made based on advanced technologies.

We guarantee after-warranty service and we have spare parts in stock in Europe

Price list
EUR 10,500.00
Includes: GG 1100 + container 380 mm


SPECIFICATIONS
Model: GG 1100
Brand: Günter Grossmann
Operating weight: 1000kg
Boom: articulated arm / swing arm
Track: Hydraulically adjustable
Bucket capacity: 0.025 cbm
Bin width: 380 mm,
Engine: Japanese Kubota
Cylinders: 3 cylinders
Power: 16 hp
Pjdpfx Agsp Aruxszsrc
Main pump: Wanye hydraulic
Rotary engine: Dali
driving work engine: Dali
Movement speed: 1.5 km/h
MAIN DIMENSIONS
Total dimensions (DxSxW): 2770x936x1490 mm
Total track length: 1230 mm
Chassis width: 896 mm
Track width: 200mm
Chassis ground clearance: 132 mm
Track height: 320 mm
WORK SPACE
Max. digging depth: 1650 mm
Maximum digging height: 2610 mm
Maximum digging radius on the ground: 2890 mm
Turning circle: 360°
Max height of the dozer blade max.: 345 mm
Max. depth dozer blade: 255 mm
