CONSTMACH Mobile Cement Silo / Horizantal Silo

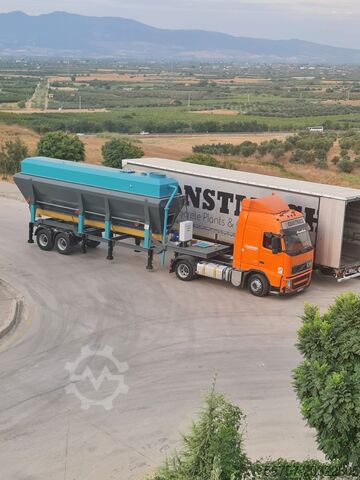

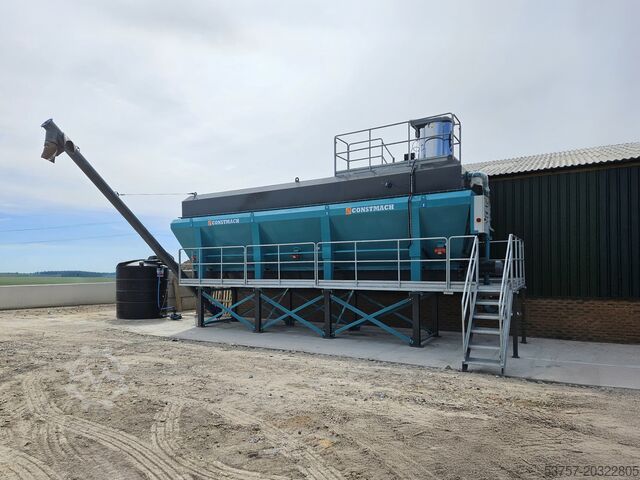

The Constmach horizontal mobile cement silo is a practical and economical solution that enables concrete production plants to become fully mobile. This system can be easily installed on-site without requiring foundation preparation, significantly saving time and labor. Thanks to its compact design, transportation and assembly processes are extremely fast. The silo body is supported by vibrators, pneumatic systems, and air nozzles to ensure maximum efficiency in cement flow. The V-type horizontal screw conveyor located at the bottom allows for homogeneous discharge of cement.

Its double-axle, wheeled chassis offers high stability and easy transport for mobile use. The filter and safety valve system found in vertical silos is also included in this model, ensuring safe working conditions. The body and top cover are made of durable ST-37 steel plates. In addition, the surface is coated with an anti-corrosive primer and double-layer epoxy paint for long-lasting external protection. Maintenance doors on both sides and on the roof facilitate cleaning and inspection.

Horizontal Cement Silo Technical Specifications

Silo Capacity: 39 tons / 30 m³ (cement density 1.3 tons/m³)
Silo Weight: 7,460 kg
Silo Body Material: ST-37, 5 mm metal sheet
Silo Top Cover Material: ST-37, 4 mm metal sheet
Hnodpfxjxphtzo Aczou
Filling Pipe: 4" steel pipe
Paint Information: 1 coat of anticorrosive, 2 coats of epoxy, total thickness 140 microns
Chassis Material: NPU 180 mm, double axle, 4 tires
Equipment: 3 x 0.37 kW vibrators, V-type screw conveyor, fluidization nozzles, pneumatic equipment
Why Choose Constmach Mobile Cement Silos?
The most important reasons to choose the Constmach mobile cement silo are its high-quality materials and practical portability. Manufactured to European standards, this model increases operational efficiency with quick installation on site and minimal maintenance requirements. With its durable construction, safe operating conditions, and spare parts support, Constmach offers you a reliable solution partner for your projects.

What Do We Do at Constmach?

Constmach is a leading machine manufacturer serving the construction and mining industries with a wide range of products. Our product portfolio includes concrete block making machines, stationary and mobile concrete plants, rock crushing machines, rock crushing and screening plants, sand washing machines, sand making machines, asphalt plants, conveyor belt systems, jaw crushers, and mobile crushing plants. With its high quality standards, innovative production approach, and customer-focused solutions, Constmach stands out as a reliable brand in both national and international markets. Our products continue to be the preferred choice of industry professionals due to their durability, efficiency, and long-lasting performance.
