Dây chuyền chiết rót lon Comac ISO 14-2 (2018)

Comac Abfülllinie für Dosen

Overview

This complete can filling line was manufactured by COMAC and is designed for the filling of carbonated beer in aluminium cans. The line has a nominal output of 5,500 cans/hour for 44 cl cans and 6,000 cans/hour for 33 cl cans.

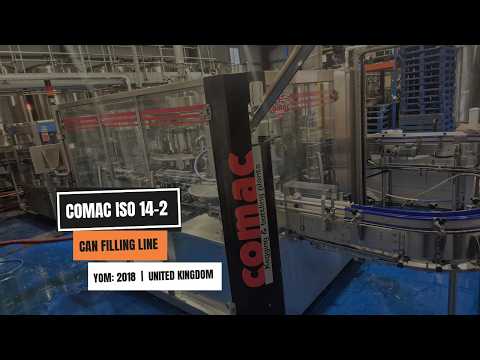

The core machine is a COMAC ISO 14-2 filling and seaming monoblock with 14 electro-pneumatic isobaric filling valves and 2 seaming heads.

The filling monoblock includes CO₂ flushing before filling, product tank pressure control, “no can – no fill” function, automatic height adjustment for different can sizes and CIP dummy cans suitable for acid and caustic cleaning up to 80°C.

The self-adhesive labeller handles a maximum label length of 210 mm and a maximum label height of 80 / 160 mm at up to 6,500 cans/hour.

The dry rinsing system uses approx. 0.25 Nl of ionized air per can, with a treatment time of approx. 3 seconds.

Technical data

- Line type: Complete can filling line
- Manufacturer: COMAC
- Year of manufacture: 2018
- Product: Carbonated beer
- Nominal output: 6,000 cans/hour (33 cl); 5,500 cans/hour (44 cl)
- Filling temperature: 2–4°C
- CO₂ content: max. 5.5 g/L
- Container type: Two-piece cans with SOT
- Can formats: 330 ml and 440 ml
- Can diameter: 66 mm
- Can end: 202
- Product pressure: 3–4 bar
- Water pressure: 3–4 bar
- Air pressure: 6 bar
- CO₂ pressure: 6–8 bar
- Electrical supply: 3x400 V + N + T, 50/60 Hz
- Auxiliary voltage: 24 V

Scope of Delivery

- Can Depalletizer | COMAC | For pallet size 1,120 x 1,300 mm; incl. empty can buffer table and platform | 2018
- Dual Channel Can Rinser | COMAC | Ionized Air Rinser | HEPA filtration, ionized air cleaning, 2-channel design | 2018
- Self-Adhesive Labeller | COMAC | Wrap-around labelling for empty cans; 6-plate carousel | 2018
- Filling / Seaming Monoblock | COMAC | ISO 14-2 | 14 isobaric filling valves / 2 seaming heads | 2019
- Double Shower | COMAC | Washing device after level control | 2018
- Beer Pump | COMAC | Centrifugal beer pump with frequency converter and pressure control | 2018
- Level / Lid Inspection | FT System | HS600-ST+CL003-RX+CT001-SE+ZT | X-ray level control / inspection system | 2019
- Can Twister 1 | COMAC | 180° can inversion before coding | 2018
- Can Dryer | BRB Globus | MEGA ADE 611 CW | 2019
- Ink Jet Coder | COMAC | Continuous inkjet coder, up to 162.5 m/min | 2018
- Can Twister 2 | COMAC | Return cans to upright position | 2018
- Carton closing system | SOCO System | T-10 | 2012
Laodpfxjzktw Uj Aqleh
- Can / Case Conveyor System | COMAC | Conveyor system according to layout | 2018
- Conveyor Canopy | COMAC | Stainless steel canopy above empty can conveyors | 2018
- Change Parts | COMAC | – | Format parts for 33 cl cans and 44 cl cans incl. spouts, twisters and labeller parts | 2018
- Technical Documentation | COMAC | Documentation in English, paper copy and CD-ROM | 2018

Condition

Used line – built in 2018, currently still installed. The line can be viewed on request.

Availability

Immediately available. Location: United Kingdom.
