Canal paver smooth

A. Paver Module
Travel System:
Power: 3kW motors × 2 (2 drive heads per side, totaling 4 motors)
Working Width: 1.9m (single-pass coverage)
Lifting System:
Motorized screw lift: 0.75kW × 2 (2 sets per side for precise height control)
Vibration System:
3KM high-frequency vibrators × 2 units (ensuring concrete compaction)
Key Advantages:
Multi-motor synchronous drive for smooth and efficient paving; integrated vibration
and lifting for complex slope surfaces.
B. Finishing Machine Module
Travel System:
Power: 2.2kW motor × 1 (2 drive heads per side)
Working Width: 1.9m (matched with the paver)
Lifting System:
Hinge-type lifting (manual/hydraulic adjustment for flexible slope adaptation)
Finishing System:
Finishing heads: 3kW motors × 2 (80cm working width, dual-head synchronized
finishing)
Chsdpfx Ajz Izffjclsc
Motorized screw lift: 0.5kW × 2 (precise pressure control)
Trolley device: 3kW motor × 1 (automatic transverse movement for efficiency)
Key Advantages:
Dual finishing heads for one-pass completion; automated trolley reduces labor
intensity.

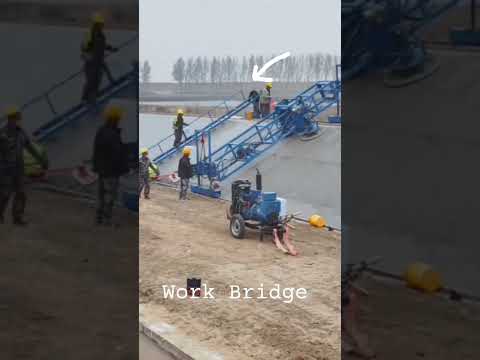

C. Work Platform Modules any America Inc.
Travel System:
Power: 2.2kW motor × 1 (2 drive heads per side)
Working Width: 1.9m (synchronized with the main machine)
Lifting System:
Hinge-type structure (quick height adjustment for manual repairs)
Application:
Provides a safe and stable platform for workers, complementing paving and finishing
operations.
D. Cutting machine (horizontal and vertical)
E.100KW generator
