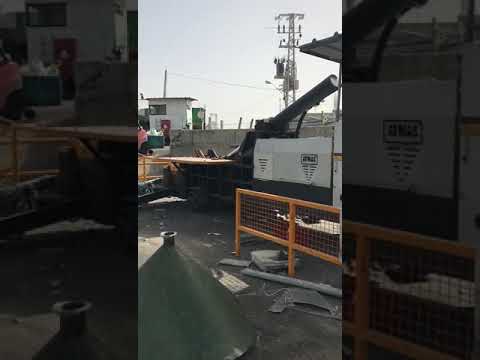

Aymas Recycling Machinery HP3 (40x40) Baling Press

Also, different models are available!
IMPORTANT: MACHINE WILL BE BRAND NEW

SEE THE TECHNICAL DESCRIPTION BELOW
1. Bale Size: 400mm x 400mm x...
2. Container Dimensions (Width x Length x Height): 1.000mm x 2.000mm x 800mm
3. Capacity: 4 tons/hour (Steel), 5 tons/hour (Copper), 2 tons/hour (Aluminium)
4. Cycle Time: 90 seconds ( Idle )
5. Top Cover Cylinder Thrust: 90 tons
6. Preliminary Compression Cylinder Thrust: 150 tons
7. Main Compression Ram Thrust: 210 tons
8. Maximum Working Pressure: 300 bars
9. Electric Motor: 37 kW
10. Machine Dimensions (Width x Length x Height): 3.400 mm x 6.800 mm x 3.000 mm
11. Machine Weight: 18.000 kg
12. There will be an ejection door.
Chodpfedfc Iyox Agnjc
13. Repairable and four-edge-usable blades.
14. Container walls will be covered with HARDOX 450 - 500 material.
15. There will be an automatic SKF liquid lubrication system integrated into the compression chamber.
16. There will be an automatic SKF greasing system that will grease the bushings.
17. Piston shafts will be induction-hardened and chrome-plated.
18. Pumps and valves used in the hydraulic system will be by PARKER or EATON VICKERS & KAWASAKI brand.
19. Bypass filter will be added to the hydraulic system.
20. There will be an AKG Hydraulic Oil Cooling System.
21. All electrical parts will be SIEMENS or SCHNEIDER Brand.
22. The machine will be fully automatic with PLC control, PLC brand and model will be SIEMENS. There will be a touch screen SIEMENS HMI Simatic Panel with emergency buttons placed on some important points.
23. There will be blades from 2767 material (hardness 55HRC) at the borders of the top cover and the sides of the scrap chamber.
24. Machine will be under AYMAS Makina San. Ve Tic. A. S. Guarantee for 1 year or 2.500 working hours whichever comes first against manufacturing defects.
