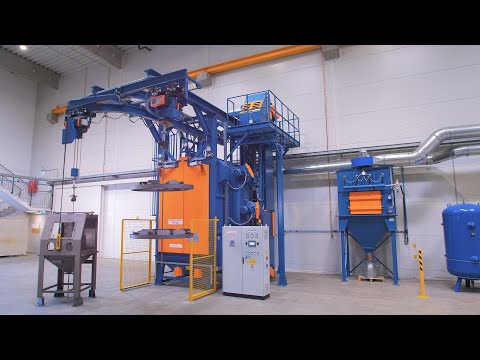

New HC-1500 Suspension Monorail Shot Blasting Machine

Description:

The HC-1500 suspension monorail shot blasting machine from ABRAZIV Kft. has been developed for the economical surface treatment of cast, forged, and welded parts as well as smaller steel structures. It is ideally suited for descaling, derusting, cleaning, and roughening a wide variety of workpieces.

The machine is manufactured to order and can be individually configured according to customer requirements.

The HC-1500 features a Y-shaped suspension monorail with two carriers, which enables continuous operation. While one carrier is in the shot blasting process, the second can already be loaded or unloaded.

The machine is equipped with three high-performance ABR-400 shot blasting turbines, which are arranged at different angles. This ensures uniform and thorough cleaning of complex workpiece geometries.

The internal surfaces of the shot blasting chamber are lined with highly wear-resistant manganese steel in the active shot blasting area. Other areas are protected by wear-resistant rubber, which also reduces noise levels.

A closed shot blasting media circuit with a collection hopper, screw conveyor, bucket elevator, air separator, and dosing system ensures reliable and economical operation.

A high-performance cartridge filter with a fan is included in the scope of supply for the extraction and filtration of dust generated during the shot blasting process.

All functions of the machine are operated via a central control unit. In addition to automatic operation, a manual mode is also available for maintenance work.
Dkjdszifcgjpfx Apaeu

Technical data
Workpiece dimensions
Maximum workpiece height: 2,000 mm
Maximum workpiece diameter: 1,500 mm
Shot blasting turbines
Number: 3
Type: ABR-400
Turbine diameter: 400 mm
Speed: 2,400 rpm
Shot blasting media flow rate: 180 kg/min
Motor power per turbine: 11 kW
Suspension monorail
Load capacity per carrier: 500 kg
Power consumption
Machine power: 37 kW
Cartridge filter: 7.5 kW
Compressed air: 6 bar
Compressed air consumption: 8 m³/h
Other data
Shot blasting media capacity: 1,800 kg
Recommended shot blasting media grain size: 0.4–1.2 mm
Extraction capacity: 6,000 m³/h
Supply voltage: 3 × 400 V
Control voltage: 220 V
Frequency: 50 Hz

Optionally available:

Electric hoist
Extended suspension monorail
Frequency inverter
Automatic shot blasting media dosing
Special coating
Transport
Installation
Commissioning
Operator training
Spare parts supply
Maintenance and service
Application areas

The HC-1500 is particularly suitable for:

Cast and forged parts
Welded structures
Small steel structures
Mechanical engineering
Tank and apparatus construction
Job-order shot blasting operations
Location / Production

Lichtenfels (Germany) / Kecskemét (Hungary)

As a manufacturer, we develop and produce our suspension monorail shot blasting machines individually according to customer requirements. In addition to the HC-1500, other sizes and special designs are available. We will be happy to advise you on the design of the appropriate machine and provide you with a non-binding offer.

Price on request
