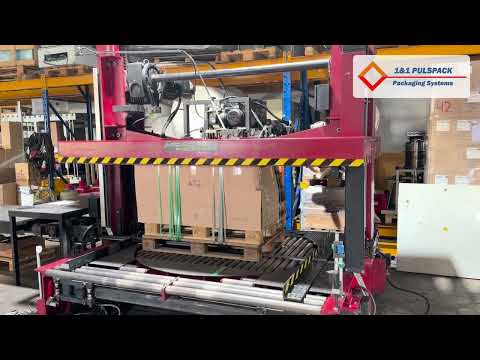

MOSCA KPM 131 Pallet Strapping Machine with Swivel Turntable / Roller Conveyor
Description
For sale is a used MOSCA KPM 131 pallet strapping machine with an integrated swivel turntable roller conveyor and pallet centering system.
The system is designed for the automatic strapping of palletized products and features an integrated swivel turntable roller conveyor with a diameter of approximately 1,800 mm.
The swivel turntable allows the pallet to be rotated within the system and positioned according to the desired strapping direction.
The machine is suitable for Euro and industrial pallets with pallet runners in the direction of travel.
A strapping head is adjustable, allowing for different strapping positions.
Machine Data
• Manufacturer: MOSCA
• Type: KPM 131
• Year of Manufacture: 1996
• Control System: Siemens S5
• Throughput Width: max. 1,200 mm
• Throughput Height: max. 1,600 mm
• Integrated Swivel Turntable Roller Conveyor: Ø approx. 1,800 mm
• Pallet Centering System
• Adjustable Strapping Head
Strapping Technology
• Band Tension: continuously adjustable: 200–2,000 N
• Band Speed: 4.6 m/s
• Sealing Method: Friction Weld Seal
• Band Guide Positions: 440 mm / 625 mm
Press
• Pressing Force: up to max. 50,000 N
• Pressing Force adjustable via potentiometer
• Drive via pole-changing geared brake motor
• Rapid Traverse Speed: 150 mm/s
• Pressing Speed: 37 mm/s
Control Panel
• Width: approx. 1,200 mm
• Depth: approx. 650 mm
• Height: approx. 850 mm
Condition / Inspection / Integration
Before delivery, the machine will be assembled in our workshop in Velbert and completely inspected mechanically and electrically.
The strapping head and all relevant machine functions will be tested. Necessary wear parts will be replaced after technical inspection and in accordance with the agreed scope of services.
After completion of the work, a functional test of the complete system will be carried out.
Upon request, we will also take over the assembly, commissioning and integration of the MOSCA KPM 131 into the customer's existing production or conveyor line.
This can include, among other things, the implementation of the necessary electrical interfaces, signal exchange and adaptation to the existing conveyor technology after prior technical coordination.
A functional test or pre-acceptance at our plant in 42551 Velbert is possible by appointment.
Transport, assembly, commissioning and integration can be offered separately.
Subject to prior sale and errors.
