Mitutoyo Contracer CV-3200H4

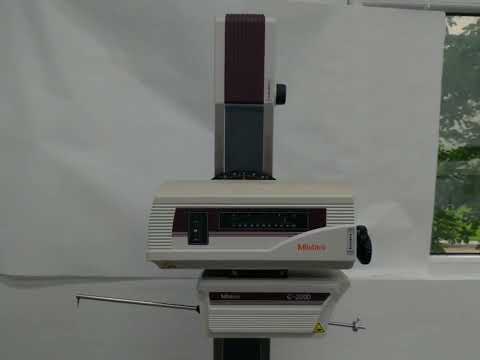

Mitutoyo CV-3200H4 CONTOUR MEASURING CONTRACER; MFG: 2018, code no.: 218-482-10D, SN: 400181806, made in Japan.
Expands measurement range while reducing workpiece interference Mitutoyo’s newly designed detector arm lowers workpiece interference while expanding the measurement range in the Z1 axis (detector).
Auto stop feature assures safety even during high-speed movement
The detector includes a safety mechanism (auto stop upon collision) to assure measurement safety even during high-speed movement. If the arm is removed or shifts during measurement, the safety mechanism is triggered and stops the machine.
Measuring range: X axis -100mm
Measuring range: Z2 axis (column) travel range 3 - 60mm (±30mm in horizontal situation)
Z2 axis (column) travel range 3 - 500mm
Detector (Z1 axis (detector unit))
Scale unit - Arc scale
Resolution 0.04µm
Stylus up/down motion: arc movement
Measuring direction: both pulling and pushing directions
Measuring face direction: downward or upward
Measuring force: 30mN (by adjusting weight)
Stylus traceable range: Ascent 77°;
Ledpfxewz Sxnj Ab Ijrh
Stylus traceable range: Descent 83° (with one-sided cut stylus: standard accessory);
Drive unit
Scale unit Separate type linear encoder
Z2 axis (column) ABS encoder
Resolution X axis 0.05µm
Resolution Z2 axis (column)1µm
Drive speed X axis 0 – 80mm/s and manual operation
Drive speed Z2 axis (column) 0 – 30mm/s and manual operation
Measuring speed X axis 0.02 – 20mm/s;
Straightness (when the X axis is horizontal) X axis 0.8µm/100mm
X axis inclination angle: X axis ±45°
Accuracy (20°C) CV-3200 X axis ±(0.8 + 0.01L) µm L = Drive length (mm) Wide range: 1.8µm/100mm Narrow range: 1.05µm/25mm;
Accuracy (20°C) CV-3200 X Z1 axis (column) ± (1.4 + | 2H | /100) µm H = Measurement height from the horizontal position;
External dimensions (W×D×H): Main unit: 756×482 ×1166mm
External dimensions (W×D×H): Controller: 221×344×490mm
External dimensions (W×D×H): Remote box: 248×102×62.2mm
Mass: Main unit: 150kg
Mass: Controller: 14kg
Mass: Remote box: 0.9kg
Operating temperature range: 15 – 25°C (within ±1K temperature fluctuation on calibration and measurement)
Operating humidity range: 20 – 80%RH (with no condensation)
Rvcunpih32
Storage temperature range: −10 to 50°C
Storage humidity range: 5 – 90%RH (with no condensation)

Price Euro 19.900 Euro + VAT, negotiable, ExWorks Simeria, Romania.
Please make an offer.
