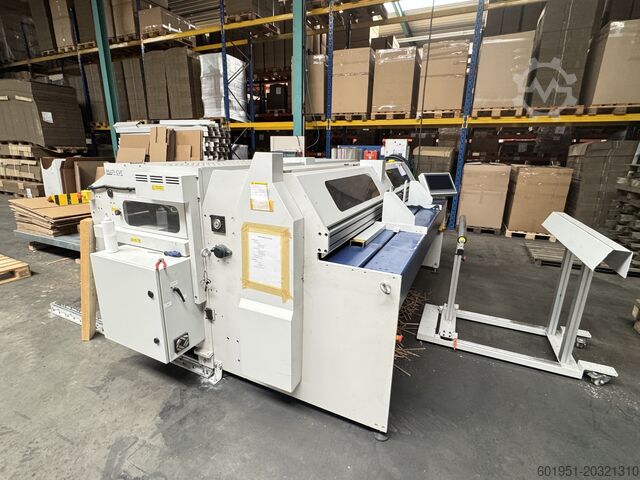

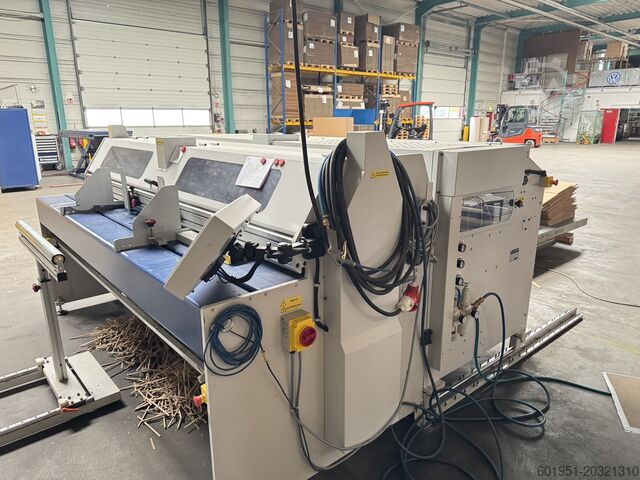

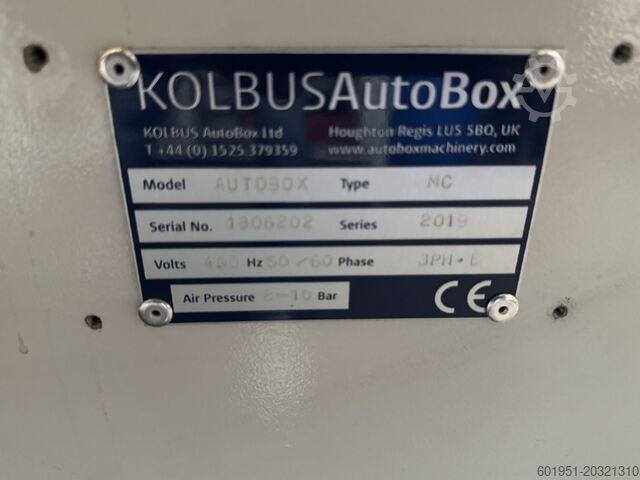

Kolbus Boxmaker AutoBox AB 300 + MC300

The Kolbus AB300 is a fully automatic, modular machine for manufacturing corrugated cardboard boxes, capable of producing various box styles (such as 0201, tray, wrap, and pallet boxes). Key specifications include a maximum speed of up to 100 m/min, fully automatic set-up via touchscreen, a maximum blank width of 2590 mm (102 inches) with unlimited length, and the ability to produce over 100 different box styles. The machine offers high flexibility, enabling quick changeovers between different sizes and styles.

Technical Specifications
Maximum Speed: Up to 100 m/min
Dcodpfx Agexpga Tolsr
Widths: From 100 mm up to 2590 mm (102 inches)
Length: Unlimited
Box Types: Over 100 different box styles, including 0201, wraps, pallet boxes, and partitions
Control: Fully automatic set-up via touchscreen
Energy Efficiency: Up to 75% energy savings compared to conventional machines
Material: Suitable for all types of corrugated board

Optionally available:

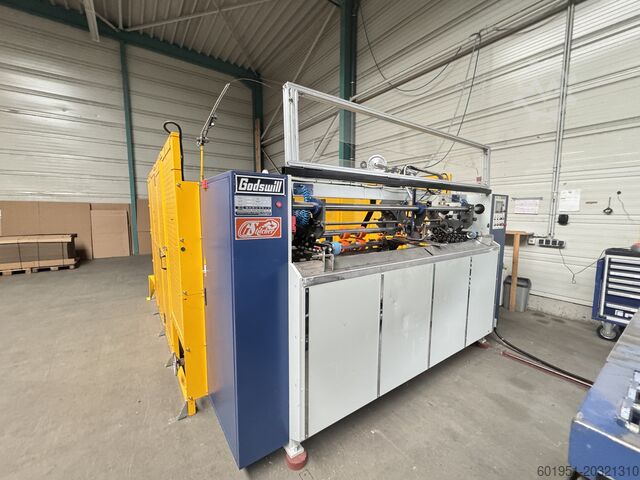

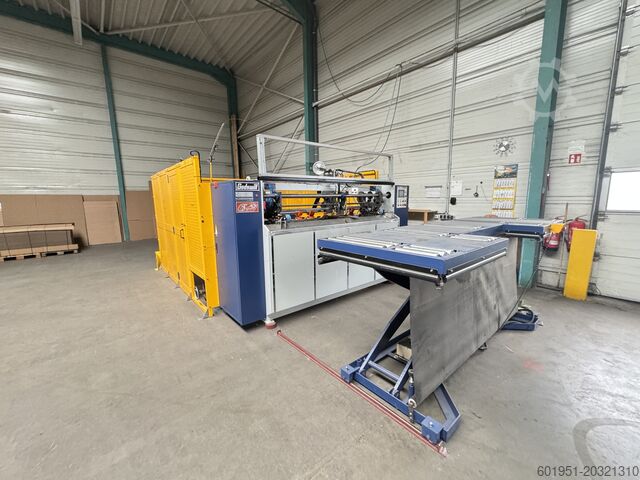

Godswill gluing machine

Type: GSS-600 / GSS-600L

Stitching speed: max. 600 stitches/min
Number of stitches: 1–99 stitches
Stitch length: 10 mm
Stack height: 850
Max. product size: 1600 mm W × 1500 mm L / 2250 mm W × 2500 mm L
Power: 12.5 HP / 14 HP
Machine weight: 4000 kg / 4500 kg
