2.600 x 500 mm / 5 tầng / 3,96 mét tuyến tính.

Dexion HI280 Kistenregal Kommissionierregal Regal

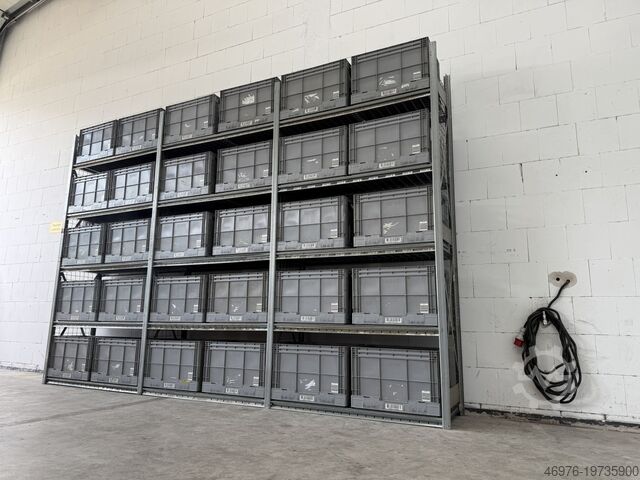

Technical Specifications for Crate Racking:
Racking System: Dexion
Type: HI280

Installation Specifications:
Number of Rack Rows: 01 unit
Rack Length: approx. 3,960 mm
Number of Bays per Row: 03 units at 1,280 mm each
Number of Levels including ground level: 05 units

Scope of Delivery Includes:

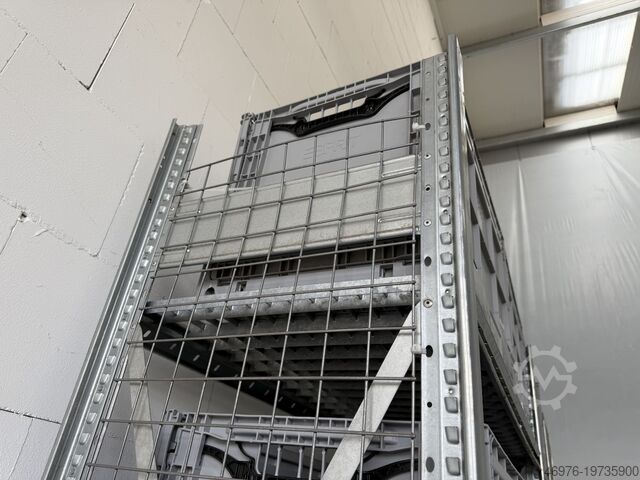

04x Upright Frames, used
Material color: Sendzimir galvanized
Frame profile dimension: 50 x 55 mm
Adjustment pitch: 25 mm
Incl. side panels
The uprights are pre-assembled
Height: 2,600 mm
Depth: 500 mm

15x Mesh Deck Panels, used
Material color: galvanized
Dimensions: 1,270 x 482 x 20 mm
Weight per unit: approx. 6.72 kg

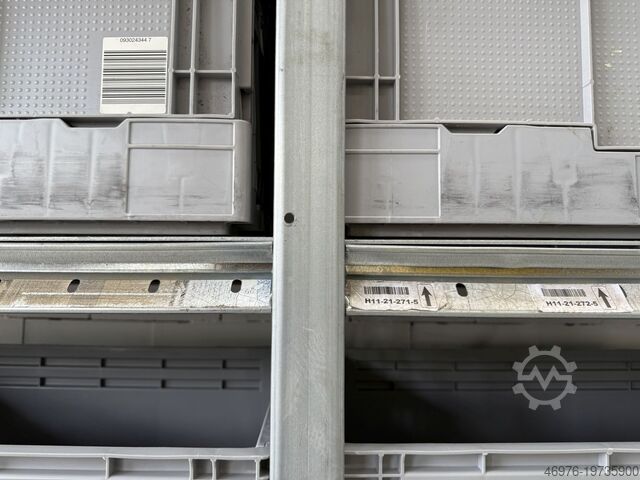

30x Shelf Beams, used
Total length: 1,280 mm
Z-profile: 52 x 25 mm
Number of hooks: 02 units
Weight per unit: approx. 0.84 kg
Material color: Sendzimir galvanized

30x Collapsible Crates, used
Manufacturer: Bekuplast
Material color: grey
Material: Polypropylene
External dimensions: approx. 600x400x400 mm (LxWxH)
Internal dimensions: approx. 555x360x385 mm (LxWxH)
Collapsed height: 85 mm
Stacked height: 75 mm
Handles: open on short sides / closed on long sides
Weight: 3.41 kg per unit

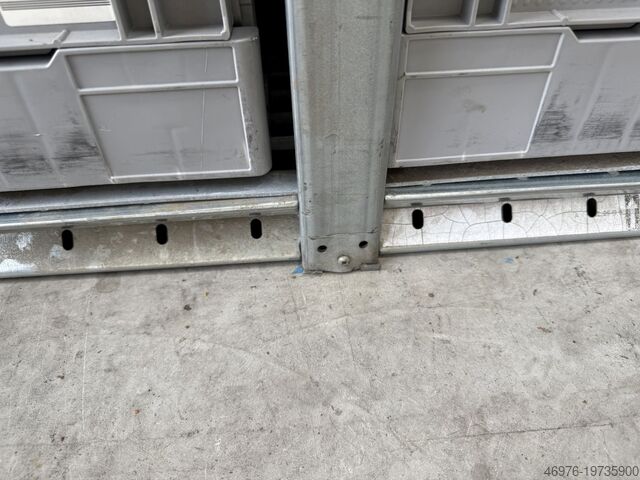

08x Levelling Plates, new
Type: HI280 U-PL. STD 42X50X1.2 VZ
Material color: Sendzimir galvanized

01x Load Capacity Sign
With specifications for bay and shelf loads, manufacturer, and commission number
Dimensions: 297 x 210 x 2 mm

General Information about the Item:
This item is offered for collection only. Delivery or shipping beyond this can be arranged at additional cost, which can be quoted separately depending on the delivery location and scope. Please contact us for details.
