Adolf Illig SB 53C - DIN

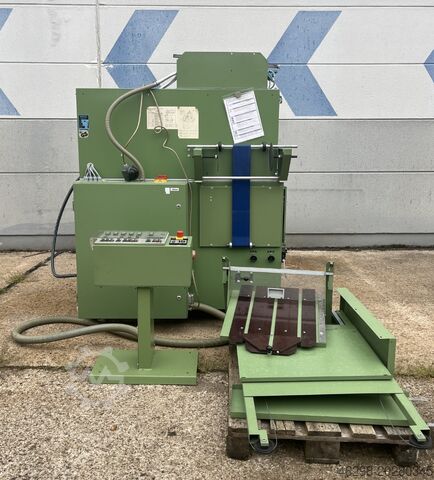

The Adolf Illig SB 53C - DIN is a used skin and blister packaging machine (universal vacuum thermoforming machine). It was developed for the economical production of transparent blister packaging and for the direct skin packaging of products onto cardboard backing cards.

Isdpexm Sa Hofx Ah Tjbb
The used skin and blister packaging machine was installed at a university and used exclusively for teaching purposes.

Manufacturer: Adolf Illig
Type: SB 53C - DIN
Year built: 1990
Technical doc.: Yes
Condition: Second hand
Price: By request

Power consumption & electrical system:
Heating capacity: 4.5 kW (provided by 15 ceramic surface heaters for uniform heating)
Drive motor power: 1.24 kW
Vacuum system: Maximum vacuum level of 0.95 kp/cm² (frequently operated with Busch vacuum pumps)
Air consumption: Approx. 30 litres per working cycle.

Film roll holders:
Film roll diameter for Blister packaging: Max. 400 mm
Film roll diameter for Skin packaging: Max. 350 mm
Film roll core diameter: 70 mm.

Format ranges & capacities:
Maximum forming area: 405 × 500 mm
Packaging / cardboard size: 400 × 495 mm
Maximum draw depth: 100 to 150 mm (both positive and negative forming possible)
Maximum packaging height: 150 mm
Film width: 445 mm.

Dimensions and weight:
Machine dimensions: Approx. length 1.600 mm × width 1.135 mm × height 2.710 mm
Empty weight: Approx. 500 kg.
